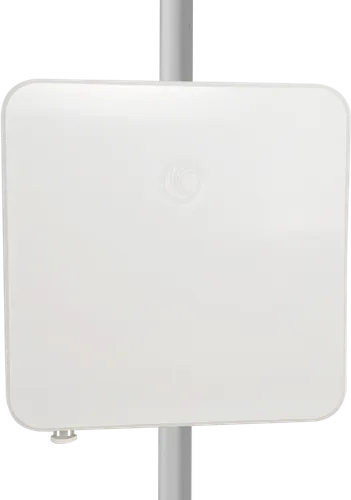

Cambium EPMP Force 300-19 EU is a CPE client device combining superior 802.11ac Wave 2 wireless technology with the proven scalable ePMP solution. It allows to achieve real throughput of up to 600 Mbps even in extremely congested radio environments.
The compact CPE from Cambium Networks has a broadband frequency range of 4910 - 5970 MHz with real-time bandwidth monitoring without any visible impact on capacity. Easily configurable modes of operation allow for symmetric and asymmetric operation, with QoS support and three levels of traffic prioritization. The Gigabit Ethernet interface provides high-speed wired communication and PoE power.
Built-in 19 dBi 2x2 MIMO/OFDM panel antenna with IP67 protection class ensures efficient wireless communication. It is characterized by excellent range and low distortion factor. Thanks to a simple external weather-resistant IP55 design, the CPE module can easily be mounted on walls and poles.
| Technical data: | |
| Frequency band | 4.91 - 5.97 |
| Communication standards | IEEE 802.1Q |
| Communication standards | IEEE 802.1p |
| Encryption / security | 128-bit AES |
| Antenna gain level (max) | 19 dBi |
| Adapted for outdoor use | Yes |
| Type MIMO | 2x2 |
| Certificates | IP67, IP68 FCCID109W-0048EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz) |
| Compatibility | Cambium Networks |
| Product weight | 1.45 kg |
| Product width | 278 mm |
| Depth of product | 45 mm |
| Product height | 278 mm |
| Width | 330mm |
| Length | 120mm |
| Height | 290mm |
