Cisco RV130 | Router | 4x RJ45 1000Mb/s, 1x WAN, 1x USB, VPN, Web filtering

CODE: RV130-WB-K9-G5 / EAN: 0882658842733

Cisco RV130 | Router | 4x RJ45 1000Mb/s, 1x WAN, 1x USB, VPN, Web filtering

CODE: RV130-WB-K9-G5 / EAN: 0882658842733
61,72 GBP without VAT (net)
Out of stock
Number of LAN ports: 4x 10/100/1000BaseTX (RJ45)
Number of WAN ports: 1x 10/100/1000BaseTX (RJ45)
Management: By web browser
Type of case: Desktop
Show more parameters

About product

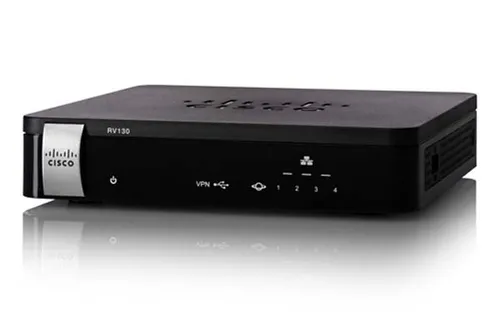

Cisco RV130 VPN router

The Cisco RV130 router provides reliable and efficient network communication, both in and out of the office. It is a reliable firewall and VPN for secure communication.
It comes with a built-in 4-port Managed Gigabit Ethernet switch that allows you to connect network devices and transfer files and data at high speeds. Setup doesn't take much time, Setting up the router will get you up and running in minutes.


Main features

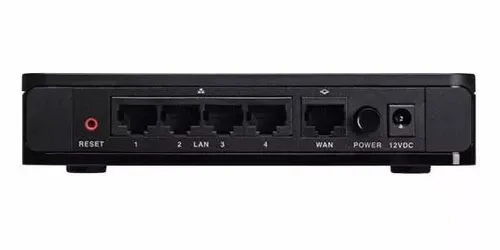

  • Interfaces: 4 x RJ-45 10/100/1000 Mbps LAN; 1 x RJ45 10/100/1000 Mbps GE WAN; 1 x USB;
  • LAN and WAN ports: Gigabit Ethernet;
  • USB 3G/4G/LTE;
  • Operating System: Linux;
  • Supports PPTP, L2TP, ICMP/IP IPsec, PPPoE, DHCP, DDNS, Bonjour;
  • IPSec VPN throughput (3DES, AES): 50 MB/s;
  • IPSec VPN Security;
  • Control: Web browser, Bonjour, Universal Plug and Play (UPnP);
  • NAT throughput: 800 MB/s;
  • IPSec VPN Firewall: 10 IPSec Firewall tunnels;
  • Encryption standard: 3DES triple encryption, AES advanced encryption standard;
  • Web Filtering.

Specification

Features / filters
Number of LAN ports 4x 10/100/1000BaseTX (RJ45)
Number of WAN ports 1x 10/100/1000BaseTX (RJ45)
Management By web browser
Type of case Desktop
Type of device power supply Power supply

Technical Product Data
Standards IEEE 802.3, 802.3 u, 802.1 D, 802.1 p, 802.1 w (rapid bonding wood), 802.1 Q (VLAN), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)
Ports LAN, PAINFUL, USB
Switch Power button (on / off)
Buttons Reset
Cable type Category 5е or better
LEDs Power, VPN, USB, WAN, LAN (ports 1-4)
Operating system Linux
Network
Network Protocols Dynamic Host Configuration Protocol (DHCP) server
Point-to-point over Ethernet (PPPoE)
PPTP tunneling protocol (point)
Layer 2 tunneling protocol (L2TP)
DNS proxy
DHCP forwarding agent
IGMP proxy and multicast forwarding
Rapid Spanning Tree Protocol (RSTP)
Dynamic Domain Name System (POP, DynDNS, 3322.org-no.)
Network Address Translation (NAT), Port Address Translation (PAT)
One-to-one NAT
Port Management
Port Mirroring
Software-configurable DMZ for each IP address on the local network
Application Level Session Initiation Protocol (SIP) Gateways (ALG)
LAN Four (4) gigabit lan 10/100/1000 Mb/s switch controlled ports
WAN One (1) gigabit WAN-port 10/100/1000 Mbit/s
Routing Protocols Static routing
Dynamic routing
RIP v1 and v2
Routing between VLANs
Network Address Translation Protocol (NAT) Port Address Translation (PAT), Port Conversion, Network Address Translation (NAPT)
Support for VLAN Port-based VLANs and 802.1 Q-tags
Number of network VLANs 5 active VLANs (range 3-4096)
IPv6 Dual stack IPv4 and IPv6
6to4 tunneling
Stateless address auto-configuration
DHCPv6 server for IPv6 clients on local network
DHCP v6 client to connect to the global network
Internet Control Message Protocol (ICMP) v6
IPv6 Static Routing
Dynamic IPv6 routing using RIPng
Network edge (DMZ) The software is set to any IP address on the local network
Layer 2 802.1 Q-based VLAN, 5 active VLANs
Security
Firewall Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial of service (DoS) prevention (DoS), software DMZ

Prevent DoS attacks:

● SYN Flood
Echo Storm
ICMP Flood
UDP Flood
TCP Flood
Blocking Java, Cookies, ActiveX, HTTP proxy
Access Control IP access control lists
Filtering Content Static URL or keyword blocking
Network filtering Content filtering, covering over 27 billion URLs
Secure Management HTTPS, username/password complexity
VPN
User Privileges 2 access levels: administrator and guest
IPsec VPN gateway-to-gateway 10 IPsec tunnels from gateway to gateway
IPsec VPN client-gateway 10 IPsec-tunnel client-gateway using VPN client Greenbow and ShrewSoft
PPTP VPN 10 PPTP tunnels for remote client access
Identification MD5/SHA1
Encryption Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES)
VPN Pass-through IPsec/PPTP/Layer 2 (L2TP) pass-through tunneling protocol
Quality of service
QoS 802.1 p priority based on LAN ports, application priority based on WAN port
3 queues
Differentiated Services Code Point support (DSCP)
Class of Service (CoS)
Bandwidth Management for service prioritization
Giant Rubber Frame Supports elephant framing on gigabit ports - at least 1536B
Performance
NAT throughput 800 Mbps
Parallel Sessions 12,000
IPsec VPN throughput (3DES/AES) 50 Mbps
Configuration
Network User Interface Simple configuration via web browser (HTTP/HTTPS)
Manual
Control Protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP)
Recording of Events Local, system log, e-mail notifications
Network Diagnostics Ping, Traceroute and DNS lookup
Upgradeability Software update is done via web browser, imported/exported configuration file
System Time Supports NTP, daylight saving time, manual input
Languages Graphical interface supports English, French, Italian, German and Spanish
Organic
Power 12V 2A
Certificates FCC class B, CE, IC
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -20° to 70°C (-4° to 158°F)
Operating humidity
From 10 to 85 percent
Storage Humidity From 5 to 90 percent

Support

Downloads:

Product Specifications Download
Guide to administration Download
Quick Start Guide Download
Data sheet Download

Faq

Can the RV130 router be installed in a 19" rack?

There is no rack mount bracket included with the router, This router is designed to be placed on a table.

What is WEB Filtering?

Web Filtering allows you to create white and black sheets, thereby restricting or allowing access to certain sites and resources for added protection.
