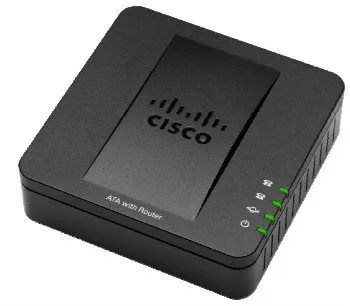

The two-port Cisco adapter offers trouble-free and convenient use of the phone over the Internet. The SP112 gateway guarantees high quality voice transmission via IP (VoIP). The adapter created by Cisco ensures ideal sound quality and the use of fax and telephone functions - without the need to upgrade existing analog phones.
Cisco SPA112 has a compact housing. It is compatible with international standards for voice and data transmission. It is equipped with 2 FXS ports - i.e. inputs enabling connection of two independent wireless or wireless telephones.
The SP112 VoIP gateway is easy to use and install. By operating via IP the connection of phones and faxes to the VoIP provider is extremely simple. It also does not have any blockages - which allows you to connect to any VoIP operator. The adapter has been designed mainly for households and small businesses.
| Features / filters | |
| AC input frequency | 50/60 |
| AC input voltage | 100-240 |
| Authentication method | SIP |
| Call waiting | Yes |
| Caller ID | Yes |
| Certification | FCC, CE, ICES, A-Tick, RoHS, UL |
| Conference call | Yes |
| Depth | 101 |
| DHCP client | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fax compatibility | T.38 |
| Height | 28 |
| LED indicators | Yes |
| MAC address filtering | Yes |
| Modem (RJ-11) ports | 2 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 45 |
| Output current | 2 |
| Output voltage | 5 |
| Power LED | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Security algorithms | SSL/TLS |
| Storage relative humidity (H-H) | 10 - 90 |
| Storage temperature (T-T) | -25 - 70 |
| Supported network protocols | IPv4, IPv6, ARP, DNS, SRV, DHCP, PPPoE, ICMP, TCP, UDP, RTP, RTCP, SNTP |
| Voice codecs | G.711,G.726,G.729 |
| VPN support | 802.1p |
| Weight | 153 |
| Width | 101 |
| WAN Interfaces | 10/100Mbit Cable/xDSL (RJ45) |
| Management | www |
| Phone ports | 2 x FXS RJ-11 |
| Number of WAN ports | 1 x WAN 100BASE-T RJ-45 (IEEE 802.3) port |
| Supported codecs | G.711 G.726 G.729A |
| Network protocols | DHCP Client |
| VoIP protocols | SIP |
| Indicator lights | 4x signal lights (Phone 1, Phone 2, Internet, Power supply) |
| Manufacturer | Cisco |
| Dimensions | 101 x 101 x 28 mm |
| Weight | 153 g |
| Power supply | 100~240V |
| EAN | 0882658434167 |
| Power supply | 5V/2A |
| Fax handling | Yes |
| Datasheet Cisco SPA112 | Download |
