Huawei HG8010H | ONT | EchoLife, 1x GPON, 1x RJ45 1000Mb/s

CODE: HUAWEI HG8010H

Huawei HG8010H | ONT | EchoLife, 1x GPON, 1x RJ45 1000Mb/s

CODE: HUAWEI HG8010H
18,37 GBP without VAT (net)
Out of stock
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
PON standard: GPON
Wireless network standards: None
USB port: None
Show more parameters

About product

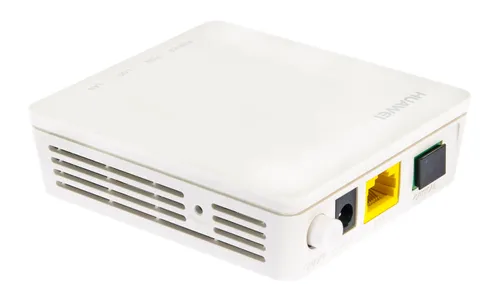

ONT Huawei Terminal HG8010H

Huawei EchoLife HG8010H ONT terminal working in GPON technology intended for use inside buildings, in optical fibre networks of FTTH type. It is equipped with a gigabit Ethernet port, thanks to which you can use the full potential of a fiber-optic network. It enables comfortable browsing and Internet use, good quality VoIP calls and watching HD movies. EchoLife HG8010H has a very good value for money, making it the ideal solution for FTTH networks as a client terminal.

ECHOLIFE HG8010H 1x gpon | gpon ont

Features of the Huawei EchoLife HG8010H terminal

- port GPON class B+ - Gigabit port Ethernet - plug and play - remote management via OLT - energy savings - tiny

ECHOLIFE HG8010H 1x gpon | gpon ont

Specification

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
PON standard GPON
Wireless network standards None
USB port None
VoIP ports None

Technical data
Network interface GPON (SC/APC)
User interface Gigabit Ethernet port
LEDs POWER / PON / FATE / LAN
Power supply 11 - 14 V DC, 0.5 A

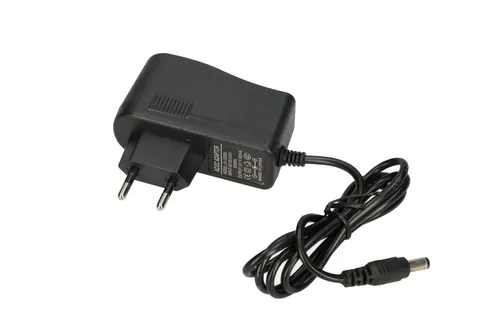

Power supply input 100 - 240 V AC, 50 - 60 Hz
Average power consumption 3 W
Maximum power consumption 3,5 W
Dimensions 82x90x27 mm
Weight 500 g
Permissible operating temperature 0 to 40 degrees C
Permissible air humidity 5%-95% RH non-condensing
GPON port Class B+

Sensitive reception: -27 dBm

Wavelength: 1310 nm upstream, 1490 nm downstream

Wavelength blocking filter (WBF)

Flexible mapping between GEM and TCONT ports

Authentication by SN or password, G.984.3

Two-way FEC

SR-DBA and NSR-DBA
Ethernet port Port based VLAN tags

Transparent 1:1 VLAN, N:1 VLAN and VLAN

QinQ VLAN

MAC address learning

Transparent transmission of IPv6 packets in Layer2 layer
QoS function Capacity limit per port

Priority 802.1p

SP / WRR / SP+WWW

Broadcast packet limit

Flow mapping based on VLAN ID, port ID or 802.1p
Multicast IGMP v2 / v3 snooping

MLD v1 / v2 snooping

Fast leave

VLAN tag translation, transparent transmission, removal of multicast packets in downstream

Limit of IGMP / MLD protocol packages
Management OMCI news

Active / passive ONT rogue detection function

PPPoE / DHCP imulation testing

OMCI / Web UI

Software backup and rollback

802.1ag Ethernet OAM

Measurement and diagnosis of the optical connection

Checking the loopback
Safeguards Filtering of MAC addresses
Saving energy Energy-saving diodes

Reduction of power consumption by unused components

COCV4

Support

Datasheet Huawei EchoLife HG8010H - ENG Download

Faq

Do I need 2 optical cables for Huawei EchoLife HG8010H, one input and one output?

No, one cable is enough, GPON uses WDM technology, which requires only one cable.

Does Huawei EchoLife HG8010H support WIFI?

Unfortunately Huawei EchoLife HG8010H does not support WIFI.

How do I reset Huawei HG8010H to factory settings?

Use one of the following methods to reset Huawei HG8010H to factory settings:

Select System Tools > Restore Default Configuration from the main menu on the website and click Restore Default Configuration.

To restart Huawei HG8010H with factory settings, hold down the RESET button for a long time (longer than 10s).

What is the ONT optical power range?

For Huawei HG8010H with GPON upstream transmission: -27 dBm to -8 dBm (class B+).

Can Huawei HG8010H connect to a lower layer switch?

No. Huawei HG8010H cannot connect to a PON terminal, switch or router in the lower layer.

Can I connect the optical port on the HG8010H to the optical port on the optical transceiver?

No. The optical port on the HG8010H is a PON port and the optical port on the optical transceiver is a GE port.

How to change the mapping mode of the Huawei HG8010H digital map?

Select Voice > VoIP Basic Configuration from the main menu of the website, and configure the digitmap Match Mode.
