Huawei B535-232 | LTE Router | Cat.7, Download up to 300Mb/s, Upload up to 100Mb/s, WiFi

Name: Huawei B535-232 | LTE Router | Cat.7, Download up to 300Mb/s, Upload up to 100Mb/s, WiFi
Brand: HUAWEI
SKU: HUAWEI B535-232
Price: 95.52 EUR
Availability: Discontinued
Rating: 3.0 (2 reviews)

CODE: HUAWEI B535-232 / EAN: 6901443320509

Huawei B535-232 | LTE Router | Cat.7, Download up to 300Mb/s, Upload up to 100Mb/s, WiFi Częstotliwość pracyDual Band (2.4GHz, 5GHz)

Huawei B535-232 | LTE Router | Cat.7, Download up to 300Mb/s, Upload up to 100Mb/s, WiFi

(2)

CODE: HUAWEI B535-232 / EAN: 6901443320509

95,52 GBP without VAT (net)

Out of stock

Communication type: Wi-Fi, 4G/LTE,

LTE category: Cat.7 (300Mb/s Download, 150Mb/s Upload)

Maximum wireless transmission speed: 1200 Mb/s

Number of LAN ports: 4x 10/100/1000BaseTX (RJ45)

Show more parameters

About product

LTE Huawei router

Huawei B535 is a 4G LTE WiFi router designed for multiple users in a home or small office environment. It allows users to access the Internet. The Huawei B311 221 router supports LTE cat7..

4G Huawei Router B535-232 - the most important features:

LTE 300Mbps / 100Mbps (LTE cat7)
Supported bands: LTE: B1/B3/B7/B8/B20/B28/B32/B38, UMTS: B1/B8
Wi-Fi: 802.11 b/g/n/a/ac. 2.4GHz 2x2 MIMO Wi-Fi up to 300Mbps, 5GHz 2x2 MIMO Wi-Fi up to 867Mbps, maximum users: 64
Number of LAN ports: 1 Gigabit port for LAN/WAN, 3 Fast Ethernet ports for LAN
Multi APN function (optional) for data, services TR-069
Routing mode: NAT enabled (default) / Pass-through IP (optional)
VPN client service (L2TP, PPTP)
Client management via WebUI or HUAWEI SmartHome APP (iOS or Android)
Operator maintenance via TR-069 (optional) and TR-143 (optional)
Huawei Firmware Over the Air (HOTA)
Micro SIM card slot

Support for many network access standards - WiFi, 4G LTE

Router Huawei 4G B535 provides access to fast Internet 4G LTE 300Mbps cat7. The device works with many other connection standards (LTE, DC-HSPA+, HSPA+, HSPA, WCDMA, DGE, GPRS, GSM). The Huawei B535 router has been equipped with Wi-Fi module working at 2.4 GHz and 5GHz in AC standard. WPS ensures fast connection with the network.

Huawei router 4g lte b535 - easy configuration

The intuitive website makes the configuration process easier, just a few minutes to connect to the Internet. Thanks to the B315 router's configuration wizard, the device is ready to use after a few steps.

We also recommend other products from our offer:

Specification

Features / filters
Communication type	Wi-Fi, 4G/LTE,
LTE category	Cat.7 (300Mb/s Download, 150Mb/s Upload)
Maximum wireless transmission speed	1200 Mb/s
Number of LAN ports	4x 10/100/1000BaseTX (RJ45)
Operating frequency	Dual Band (2.4GHz, 5GHz), LTE,
Wireless network standards	IEEE 802.11ac, IEEE 802.11n,
Additional connectors / interfaces	2x SMA
LTE bands	B1 (2100MHz), B3 (1800MHz), B7 (2600MHz), B8 (900MHz), B20 (800MHz), B28 (700MHz), B32 (1500 MHz), B38 (2600MHz),
Type of device power supply	Power supply

Basic technical data
WAN	3GPP Release 11
LAN	IEEE 802.3/802.3u
Wi-Fi	IEEE 802.11a/b/g/n/ac
Supported bands / frequencies
LTE	B1/B3/B7/B8/B20/B28/B32/B38
UMTS	B1/B8
Wi-Fi	2.4 GHz: 2.4 GHz - 2.473 GHz, 5 GHz: 5.15 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz

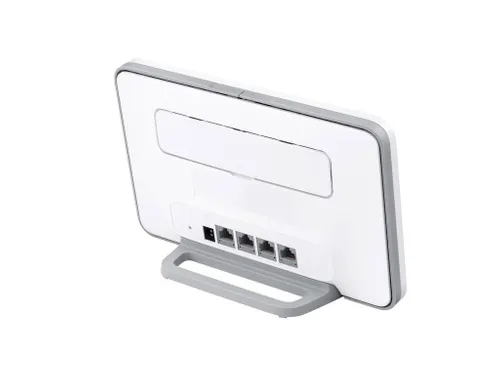

Ports	One power supply port One LAN/WAN port (RJ45), 3 LAN ports (RJ45) Two external LTE antenna ports (SMA) One SIM card slot (Micro-SIM)
Antennas	Built-in LTE/UMTS main antenna Built-in additional LTE/UMTS antenna Built-in 2.4 GHz WLAN antenna Built-in 5 GHz WLAN antenna
LED signalling	One power indicator (white) One Internet status indicator Cyan: Access to the LTE network Blue: UMTS network access Yellow: GSM network access Green: Ethernet access Red: No SIM card was inserted or detected, or the SIM card does not have a sufficient balance One Wi-Fi/WPS/Hi indicator (white) Slow flashing: A passive HiLink is detected. Fast flashing: Pairing of the HiLink continues. Off: WiFi is turned off. The indicator starts flashing slowly only when B311-221 detects a new HiLink. HiLink devices include Honor routers, Honor configuration boxes, Honor headphones (EMUI 5.0 and newer) and others. One LAN indicator (white) One group of signal strength indicators (white)
Buttons	One power on/off switch One WPS/Hi button The Wi-Fi indicator flashes slowly when the router detects HiLink. Press the WPS button to connect HiLink to the Wi-Fi network in your router. When the Wi-Fi indicator is on, press the WPS button to enable WPS. One Reset button
Maximum transmission power
LTE	B1/B8/B20/B28/B38: 22.5 dBm B3/B7: 22 dBm
UMTS	B1/B8: 22.5 dBm
Wi-Fi	802.11b: 14.5 dBm 802.11g: 15.5 dBm 802.11n: 15.5 dBm 802.11a: 18 dBm 802.11ac: 18 dBm
Other
Energy consumption	< 12 W
AC/DC power supply	AC (input): 100V-240V 50Hz/60Hz DC (output): 12V/1A
Dimensions (Maximum)	219 mm (width) x 138 mm (height) x 25.6 mm (depth) (not included the socket) 219 mm (width) x 138 mm (height) x 60.66 mm (depth) (including socket)
Weight	Approximately 325 g (without power supply)
Temperature	Operating temperature: 0°C to 40°C Storage temperature: -20°C to +70°C
Humidity	5% - 95% (non-condensing)
Certification/conformity	CE, Wi-Fi, ERP, ROHS, REACH, GCF
LTE
LTE bands	FDD LTE B1: 1920-1980 MHz 2110-2170 MHz B3: 1710-1785 MHz 1805-1880 MHz B7: 2500-2570 MHz 2620-2690 MHz B8: 880-915 MHz 925-960 MHz B20: 832-862 MHz 791-821 MHz B28: 703-748 MHz 758-803 MHz B32: NA 1452-1496 MHz TDD LTE B38: 2570-2620 MHz 2570-2620 MHz UMTS B1: 1920-1980 MHz 2110-2170 MHz B8: 880-915 MHz 925-960 MHz
2.4 GHz WiFi antenna
Frequency	2.4 GHz-2.473 GHz
Input impedance	50 Ω
Standing wave	< 2
Effectiveness	-3 dB
Strengthening	3.5 dBi
Polarization	Linear
5 GHz WiFi antenna
Frequency	5.15 GHz - 5.35 GHz & 5.47 GHz - 5.725 GHz
Input impedance	50 Ω
Standing wave	< 2
Effectiveness	-3 dB
Strengthening	3.5 dBi
Polarization	line
Software
Router	Supports the default route: 0.0.0.0.0. Supports manual configuration of LAN IP addresses. Supports Address Resolution Protocol (ARP).
DHCP server	The DHCP server can be enabled or disabled. The DHCP server address pool can be configured. Lease can be configured. The DNS relay under the DHCP server can be enabled or disabled.
NAT	Supports NAT and NAPT (compliant with RFC2663, RFC3022 and RFC3027). Supports cone NAT. Supports Symmetric NAT
ARP	Supported
ICMP	Supported
IPv4 and IPv6	IPv4v6 double stack IPv6 only (optional, CLAT for LAN side Internet access on IPv4 side) IPv4 only (optional) When CLAT is enabled, the Internet access service of the IPv4 device cannot reach its maximum capacity. Only in IPv6 is not available NAT database service (e.g. port forwarding and port triggering).
VPN pass-through	Supported
VPN client	Support L2TP VPN client Support PPTP VPN client
SMS	Writing/Sending/Receiving Writing/sending/receiving very long messages
Date service	LTE : DL 300 Mbps, UL 100 Mbps DC-HSPA+: DL 42 Mbps, UL 5.76 Mbps HSPA+: DL 21 Mbps (64QAM), UL 5.76 Mbps HSPA: DL 14.4 Mbps, UL 5.76 Mbps WCDMA PS: DL 384 Kbps, UL 384 Kbps Wi-Fi 802.11b/g/n/a/ac Supports multi APNs (Optional, one for data and one for TR-069).
Firewall configuration	Firewall activation/deactivation URL filtering IP filtering in LAN Port forwarding (Virtual server) Triggering ports (special application) DMZ service UPnP service ALG settings
LAN	10/100/1000 Mbps auto-negotiation Automatic MDI/MDIX detection Compliant with IEEE 802.3/802.3u
Wi-Fi	Sets and hides service set identifiers (SSIDs) Compliant with IEEE 802.11b/g/n/a/ac WPS WMM
Encryption	WEP, AES, and TKIP + AES
Security Modes	Open WPA2-PSK WPA/WPA2-PSK WEP
MAC Address Authentication	Supports white MAC address authentication list. Supports black MAC address authentication list. Supports up to 10 MAC address entries.
STA	Supports the STA status query. Supports up to 64 connected stations.

95,52 GBP without VAT (net)

Out of stock
