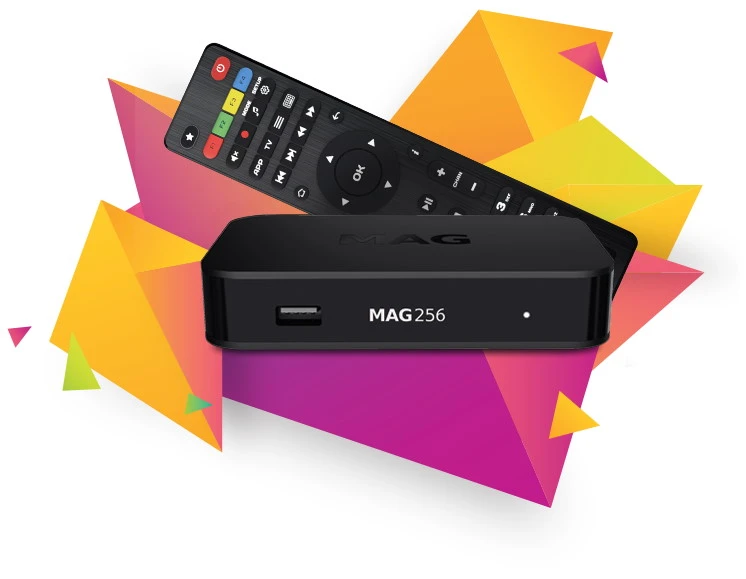

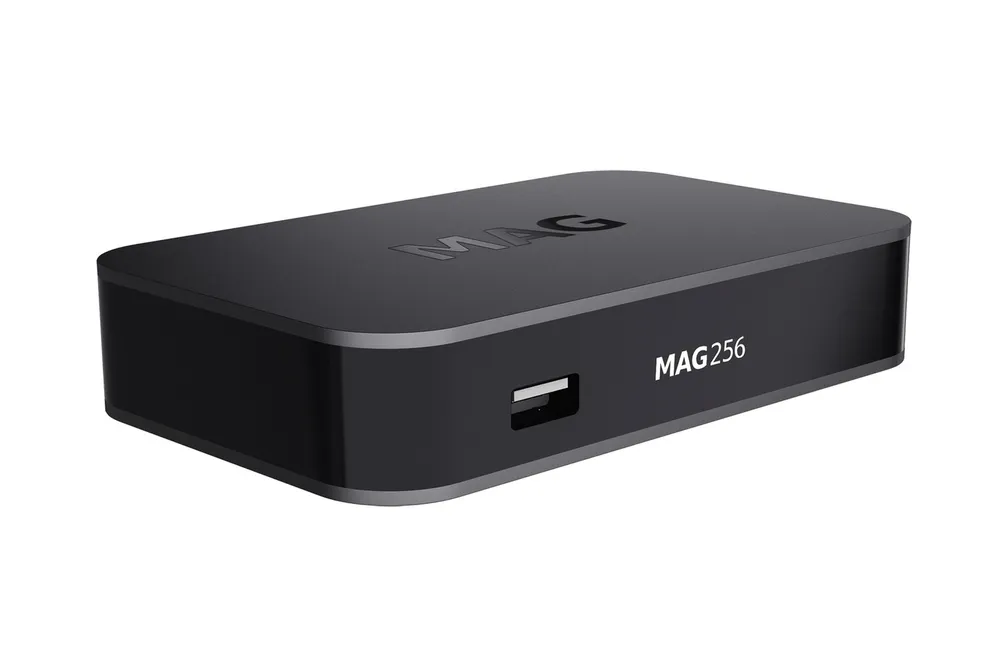

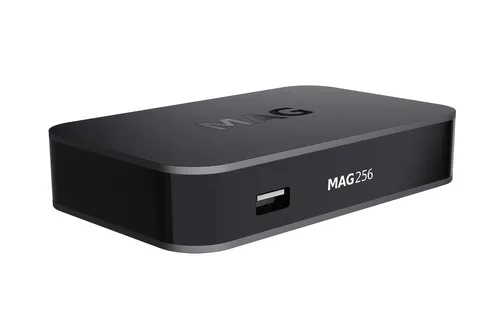

Infomir MAG256 is a high-end set-top box based on the new STiH301 chipset and supporting HEVC technology. With enhanced capabilities, MAG256 plays high-quality video, including FullHD, and allows you to use resource-intensive applications.
Infomir MAG256 is a unique open platform. You can make your own changes to the decoder software as well as integrate it with other middleware. With a good processor, the decoder plays FullHD content without any problem. The S/PDIF audio output allows you to connect a multi-channel High-End system, and the HDMI 1.4A port ensures the highest picture quality.
| Basic general data | |
| Manufacturer | Infomir |
| Model | MAG256 |
| Type | IPTV Set Top Box |
| Physical parameters | |
| Dimensions | 132 mm x 87 mm x 26 mm |
| Weight | 190 g |
| Hardware | |
| Chipset | STiH301 |
| Processor | ARM Cortex A9 1.5 GHz |
| Performance | 3500 DMIPS |
| RAM | 1GB |
| Flash Memory | 512 MB |
| Software | |
| Operating system | Linux 3.3 |
| Embedded media portal with IPTV functionality based on WebKit, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C-layer SDK | |
| DRM option | Secure Media |
| Supported middleware | Minister TV-platform |
| External interfaces | |

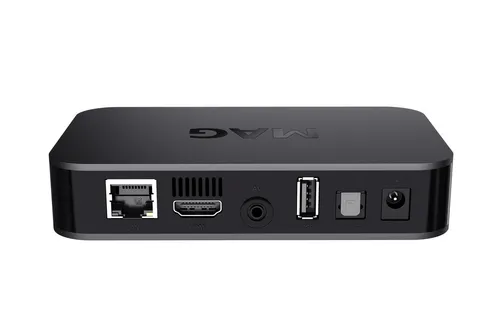

| HDMI 1.4a, Composite Stereo A/V Output, S/PDIF Optical Audio Output, 100Mbps Ethernet, USB 2.0 | |
| Sources of media content | |
| PC and NAS in LAN, streaming media protocols (RTSP, RTP, UDP, HTTP), USB devices | |
| Audio and video | |
| Audio codecs | MPEG-1 Layer I/II, MPEG-2 Layer II, MPEG-2 Layer III (mp3), Dolby Digital, AAC-LC, HE-AAC v1, HE-AAC v2 |
| Audio formats | MP3, MPA, M4A, OGG, WAV, AAC |
| Video modes | 1080i, 1080p, 720p, 576p, 480p, PAL, NTSC |
| Video codecs | MPEG1/2 MP@HL, H.264 HP@level 4.1, H.265 (HEVC), MPEG4 part 2 (ASP), XviD; support for 3D and HD video (40Mbps and above) |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT |
| Image formats | JPEG, PNG, BMP, GIF, RAW |
| Subtitles | ttxt sub, DVB, WebVtt, PGS, Ass/Ssa, Srt, Sub, Closed Captioning |
| Playlist formats | M3U |
| Shipping kit | |
| MAG256 decoder, HDMI cable, remote control, AAA batteries - 2 pieces, package, power adapter 12 V, 1 A, user manual | |
The built-in port on the Infomir MAG256 decoder has a maximum transmission rate of 100 Mbps.
