The Mercusys Wireless network card will allow you to use the wireless network on your desktop or laptop up to a speed of 300Mbps. The device is equipped with the SoftAP function so your computer or laptop can act as Wi-Fi hot-spot. This is an ideal solution to meet your needs for Internet surfing.

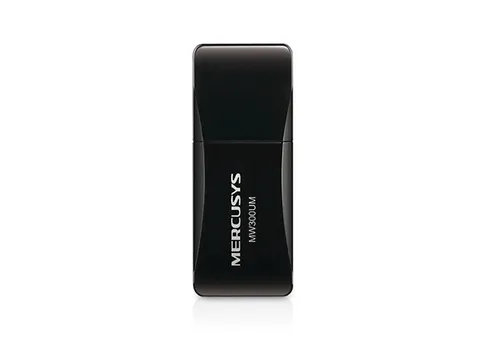

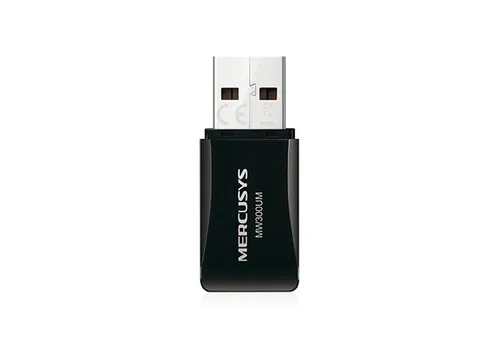

Mercusys MW300UM was created to never let you down. It was designed to fit to any USB port. The MW300UM is so handy that you can take it with you on any trip.
| Features / filters | |
| Wireless network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
| Antenna | Yes |
| Antenna design | Internal |
| Certification | CE |
| Connectivity technology | Wired & Wireless |
| Depth | 17.2 |
| Frequency range | 2.4 - 2.4835 |
| Height | 8.5 |
| Host interface | Mini-USB |
| Interface | USB |
| Internal | Yes |
| Manual | Yes |
| Maximum data transfer rate | 300 |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Package depth | 100 |
| Package height | 28 |
| Package type | Box |
| Package weight | 50 |
| Package width | 150 |
| Product colour | Black |
| Quick start guide | Yes |
| Security algorithms | WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Sustainability certificates | RoHS |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Transmit power range | 0 - 20 |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 42.9 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 |
| Equipment features | |
| Dimensions (S X G X W) | 42,9 × 17,2 × 8,5 mm (1,69 × 0,68 × 0,33 inches) |
| Transmission speed | 11n: Up to 300 Mb/s (dynamic) 11g: Up to 54 Mb/s (dynamic) 11b: Up to 11 Mb/s (dynamic) |
| Frequency of operation | 2,400 - 2,4835 GHz |
| Package contents | Mini wireless USB adapter N300 Quick Installation Guide CD |
| Working environment | Permissible operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Permissible storage temperature: -40⁰F ~ 70⁰C (-40⁰F ~ 70⁰C) Permissible air humidity: 10% ~ 90%, non-condensing Permissible storage humidity: 5% ~ 90%, non-condensing |
| System requirements | Windows 10/8.1/8/7/XP (32/64-bit) |
| Receiver sensitivity | 270M: -62dBm@10% PER 130M: -65dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Ports | USB 2.0 |
| Certificates | CE, ROHS |
| Transmission power | <20dBm |
