Mikrotik Chateau 5G R16 | 5G Router | D53G-5HacD2HnD-TC&RG520F-EU, LTE 20, 2,4GHz WiFi4, 5GHz WiFi5, 5x RJ45 1000Mb/s, Micro SIM

CODE: D53G-5HACD2HND-TC&RG520F-EU / EAN: 4752224008923

Mikrotik Chateau 5G R16 | 5G Router | D53G-5HacD2HnD-TC&RG520F-EU, LTE 20, 2,4GHz WiFi4, 5GHz WiFi5, 5x RJ45 1000Mb/s, Micro SIM

CODE: D53G-5HACD2HND-TC&RG520F-EU / EAN: 4752224008923
353,53 GBP without VAT (net)
Out of stock
4G standard: LTE-TDD & LTE-FDD
Antenna design: Internal
Built-in processor: Yes
Show more parameters

About product

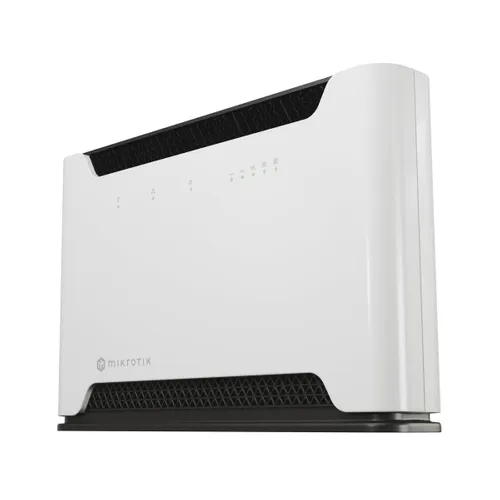

MikroTik Chateau 5G R16 - Fast Internet Anywhere, Anytime

MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC

Dual-band WiFi - Stability and Speed

MikroTik Chateau 5G R16 can transmit WiFi network in two bands simultaneously: 2.4 GHz and 5 GHz, according to 802.11 b/g/n (2.4 GHz) and 802.11 a/n/ac (5 GHz) standards. Maximum theoretical throughput is 300 Mbps for 2.4 GHz and 867 Mbps for 5 GHz. The device features internal omni-directional antennas with energy gain of 3 dBi (2.4 GHz) and 5.5 dBi (5 GHz) for robust signal coverage.

Power and Performance - Reliability for Every Day

Chateau has a powerful IPQ-4019 4-core processor clocked at 716 MHz and 256 MB of RAM, which guarantees smooth operation and reliability. The device is powered by 12 - 28 V DC, using the included 24 V 1.2 A power supply. RouterOS level 4 version 7.0 provides advanced management and security features.

Specification

Features / filters
4G bands supported 700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700
4G standard LTE-TDD & LTE-FDD
Antenna design Internal
Built-in processor Yes
DC-in jack Yes
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 5
Ethernet LAN data rates 10,100,1000
Ethernet LAN interface type Gigabit Ethernet
Flash memory 16
Indication light Yes
Internal memory 256
International Protection (IP) code IP20
Mobile network generation 5G
Operating temperature (T-T) -40 - 70
Power consumption (typical) 15
Power source type DC
Processor cores 4
Product colour Black, Grey
Product type Desktop/pole router
SIM card slot Yes
SIM card type MicroSIM
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB port Yes
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band) 300
WLAN data transfer rate (max) 867
WLAN data transfer rate (second band) 867

MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC
Processor Quad-core IPQ-4019
Number of processor cores 4
Clocking 448-896 (auto) MHz
RAM 256 MB
Built-in memory 16 MB
Type of on-board memory Flash
Ethernet interface 5x gigabit Ethernet 10/100/1000 Mbps ports
USB ports 1x USB 2.0 type A port
SIM slots 1x microSIM slot
WiFi operating bandwidth 2.4 and 5 GHz
WiFi standards 2.4 GHz: 802.11 b/g/n
5 GHz: 802.11 a/n/ac
Polarity (WiFi) 2x2 MIMO / dual chain
Energy gain of WiFi antennas 3 dBi (2.4 GHz) and 5.5 dBi (5 GHz).
Type of WiFi antennas Built-in, omnidirectional
LTE category 20, 4x4 MIMO
TAC 86945405
LTE modem R11mL-RG520F
Method of power supply DC socket 12 - 28 V
Power supply 24 V 1.2 A
Operating system RouterOS level 4 license version 7.0 (compatible only with version 7 and later)
Dimensions 240 x 156 x 44 mm
Permissible operating temperature From -30 to 70 degrees C.
5G SA FDD 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz).
5G SA TDD 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz).
5G NSA FDD 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz).
5G NSA TDD 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz).
5G NR SA Sub-6 4.0 Gbps (DL)/ 900 Mbps (UL)
NSA Sub-6 4.0 Gbps (DL)/ 550 Mbps (UL)
3G R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Cat. 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz).
LTE TDD 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
353,53 GBP without VAT (net)
Out of stock
