MikroTik PowerBox Pro | Router | RB960PGS-PB, 5x RJ45 1000Mb/s, 1x SFP, 4x PoE

CODE: RB960PGS-PB / EAN: 4752224003317

MikroTik PowerBox Pro | Router | RB960PGS-PB, 5x RJ45 1000Mb/s, 1x SFP, 4x PoE

CODE: RB960PGS-PB / EAN: 4752224003317
45,49 GBP without VAT (net)
Number of LAN ports: 5x 10/100/1000BaseTX (RJ45)
Built-in processor: Yes
Cabling technology: 10/100/1000Base-T(X)
CPU frequency: 800 MHz
Show more parameters

About product

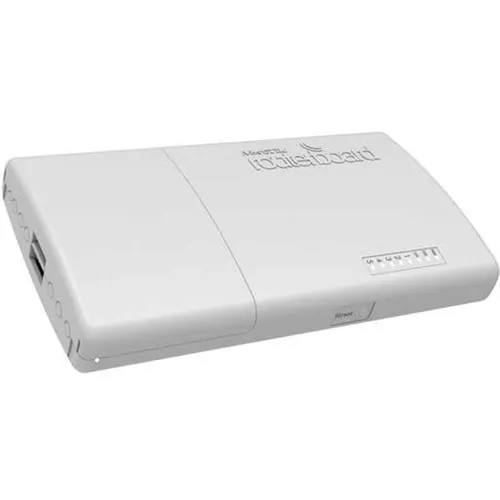

MicroTik PowerBox Pro RB960PGS-PB - External router

PowerBox Pro is an external router with a five-gigabit Ethernet port with PoE output on four ports. Since the device has a waterproof external enclosure, it can be mounted on a tower or in other outdoor locations.

MicroTik PowerBox Pro RB960PGS-PB - External router

Less cables with PowerBox Pro !

The routerboard powerbox pro rb960pgspb also supports passive PoE input and passive or 802.3af/at PoE. The Ethernet 2-5 ports can power other PoE-capable devices with the same voltage as the device. Less power adapters and cables to worry about! It can power devices operating in B 802.3at and af mode if input voltage 48-57 is used.

Less cables with PowerBox Pro !

Possibility of connecting a fibre optic cable with SFP post

The device has a SFP port to connect the optical fibre. The rb960pgspb microtik is inexpensive, small and easy to use, but at the same time equipped with a very powerful 800MHz processor, capable of all advanced configurations that RouterOS supports.

Possibility of connecting a fibre optic cable with SFP post

Ethernet test results

test

Also included are mounting accessories :

included

Specification

Features / filters
Number of LAN ports 5x 10/100/1000BaseTX (RJ45)
Built-in processor Yes
Cabling technology 10/100/1000Base-T(X)
CPU frequency 800 MHz
DC-in jack Yes
Depth 52
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 5
Ethernet LAN data rates 10,100,1000
Flash memory 16
Harmonized System (HS) code 85176990
Height 225
Internal memory 128
LED indicators Yes
License level 4
Management By web browser, CLI - Command Line Interface,
Networking standards IEEE 802.3af,IEEE 802.3at
Number of CPU cores 1
Operating system installed RouterOS
Operating temperature (T-T) -40 - 70
PoE input Yes
PoE output Yes
Power over Ethernet (PoE) Yes
Power source type DC, PoE
Power supply 9
Processor cores 1
Processor frequency 800
Product colour White
RAM memory 128MB
Storage media Flash
Type of case Plastic
Type of device power supply Passive PoE, Power supply,
Voltage monitoring Yes
Width 125

Basic technical parameters
Manufacturer MicroTik
Model RB960PGS-PB
Type of CPU QCA9557
CPU frequency 800mhz cpu
Number of CPU cores 1
Memory RAM 128mb of the framework
Number of Ethernet ports 10/100/1000 5x gigabit Ethernet
Number of SFP ports 1
Input voltage range 12 - 57 V
Jack socket 1
PoE in Passive PoE
PoE out ports Ports 2 - 5, 802.3af/at, max 1 A per port (input < 30 V), max
450 mA per port (input > 30 V), max out total 2 A
Voltage monitoring Yes
Maximum energy consumption 9 W
Dimensions 125 x 52 x 225 mm
Tested at ambient temperature -40 to +70 C
PCB temperature monitoring Yes
Data carrier FLASH
Capacity of the data carrier 16 MB
Operating system RouterOS
Licence level 4

Support

Downloads:

User Manual MikroTik PowerBox Pro RB960PGS-PB (ENG) Download
MicroTik PowerBox Pro RB960PGS-PB (ENG) brochure Download

Faq

What is a MicroTik RouterOS?

MikroTik RouterOS is a router operating system and software that transforms an ordinary PC or MikroTik RouterBOARD into a dedicated router.

What is the PoE power supply for ?

PoE allows you to use a single cable for power and data transmission, saving you money on purchasing and dragging cables for network devices and VoiP phones.

What is the default user name and password for RouterOS ?

User name is 'admin' and there is no password (press 'Enter'). To change password use '/password' command.
