MikroTik RB5009UPr+S+OUT | Router | 7x RJ45 1000Mb/s PoE, 1x RJ45 2.5Gb/s PoE, 1x SFP+, 1x USB 3.0, IP66

CODE: RB5009UPR+S+OUT / EAN: 4752224008459

MikroTik RB5009UPr+S+OUT | Router | 7x RJ45 1000Mb/s PoE, 1x RJ45 2.5Gb/s PoE, 1x SFP+, 1x USB 3.0, IP66

CODE: RB5009UPR+S+OUT / EAN: 4752224008459
249,93 GBP without VAT (net)
Out of stock
3G/4G USB modem compatibility: No
Built-in processor: Yes
Certification: CE, EAC, ROHS
DC-in jack: Yes
Show more parameters

About product

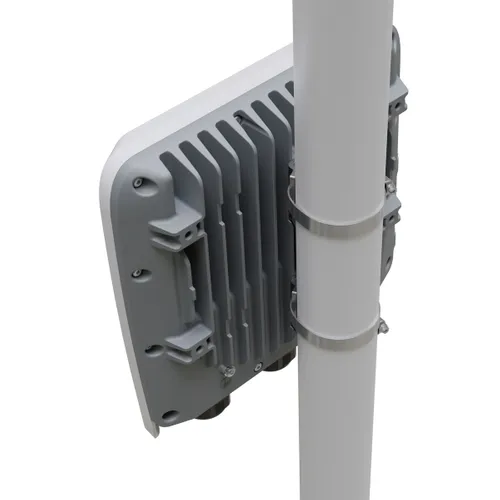

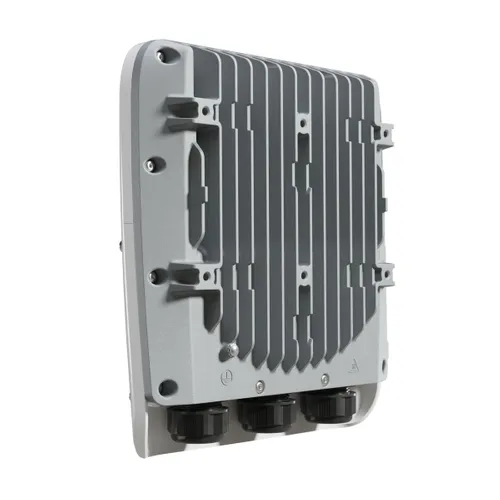

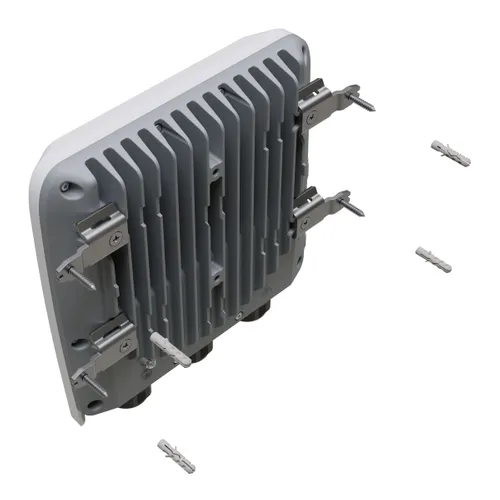

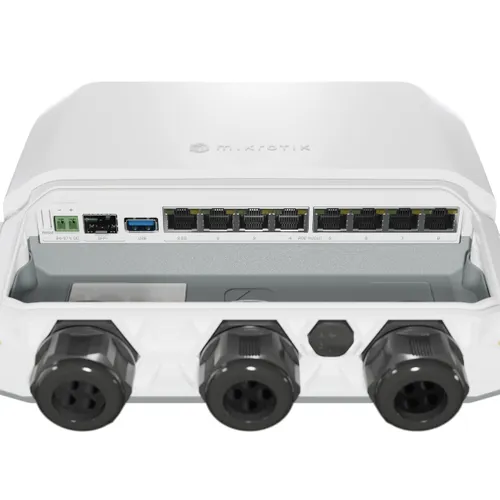

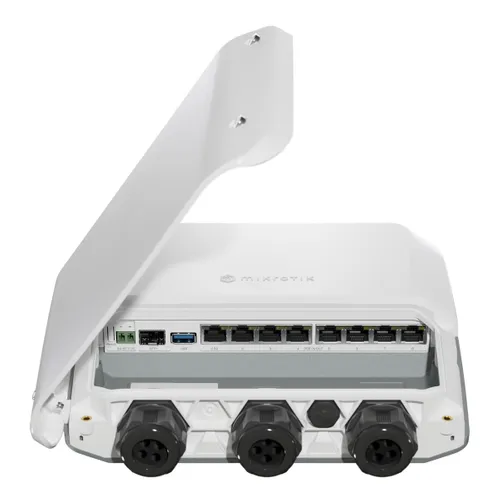

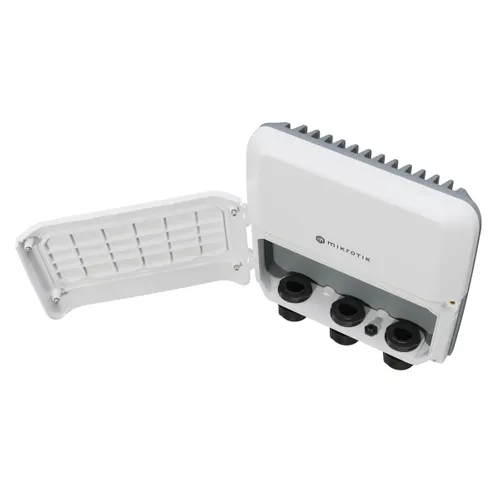

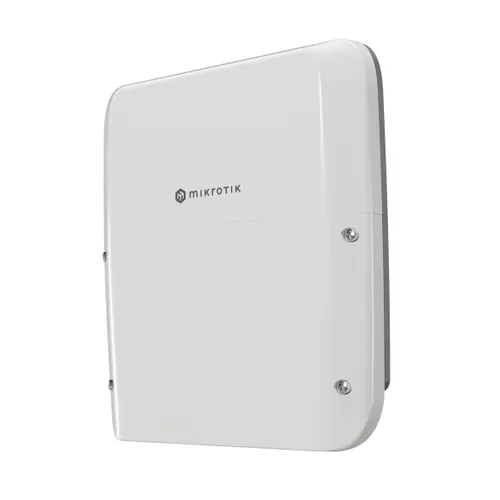

New MikroTik RB5009UPr S OUT - Your Best Choice for Outdoor Applications

The MikroTik RB5009UPr S OUT is the latest model in the RB5009 series, designed specifically for outdoor use. It is a waterproof version of the popular RB5009UPr S IN PoE router that provides reliability and performance in harsh weather conditions. The rugged IP66-rated housing guarantees protection from water, dust and other outdoor elements.

Reliability and Performance at the Highest Level

The RB5009UPr S OUT features remarkable power redundancy at an attractive price. It has 7 Gigabit Ethernet ports, 1 2.5 Gigabit Ethernet port, a 10G SFP slot , 1GB of RAM and 1GB of NAND memory. At the heart of the device is a state-of-the-art quad-core Marvell Armada ARMv8 processor, which takes full advantage of RouterOS v7 software capabilities .

Specification

Features / filters
3G/4G USB modem compatibility No
Built-in processor Yes
Certification CE, EAC, ROHS
DC-in jack Yes
Depth 239
DSL WAN No
Ethernet interface type 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports 8
Ethernet WAN No
Height 57
Internal memory 1024
Internal storage capacity 1
Manual Yes
Mean time between failures (MTBF) 200000
Networking standards IEEE 802.3af, IEEE 802.3at
Operating system installed RouterOS
Operating temperature (T-T) -40 - 70
Power consumption (typical) 150
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power source type PoE
Processor frequency 1400
Processor manufacturer Marvell
Processor model 88F7040
Product colour White
SFP+ module slots quantity 1
SIM card slot No
Temperature monitoring Yes
USB ports quantity 1
USB version 3.2 Gen 1 (3.1 Gen 1)
Voltage monitoring Yes
Width 222

MikroTik RB5009UPr S OUT
Processor Marvell Armada 88F7040, 1.4 GHz
Number of processor cores 4
Clocking 350-1400 (auto) MHz
CPU architecture ARM 64bit
RAM type 1 GB DDR4
Built-in memory 1 GB NAND
Switch chip model 88E6393
Gigabit Ethernet ports 7x 1 Gbps
1x 2.5 Gb/s
SFP slot 1x 10 Gbps
USB port 1x USB (3.0 type A)
Input voltage range 24-57 V (PoE in)
24-57 (2-pin terminal)
PoE-in 802.3af/at (ports 1-8)
PoE-out 802.3af/at Same voltage as power supply from 2-pin connector - passive PoE or 802.3af/at compliant (if 44-57 V power supply is used)
Ether1 - Ether8, max output per port (input < 30 V): 620 mA
maks. wyjście na port (wejście > 30 V): 420 mA
Smart PoE Controller
Max total out 2.59 A
Total output power 120 W
Total output current 2.28 A
Rated voltage of the power supply 48 V
Rated current of the power supply 2 A
Maximum power consumption (without PoE) 15 W
Maximum power consumption 150 W
Dimensions 222 x 239 x 57 mm
Permissible operating temperature From -40 to 70 degrees C.
Operating system RouterOS v.7 Level 5
