Aqara Single Switch Module T1 | Switch module | no Neutral, Zigbee, EU, SSM-U02

CODE: SSM-U02 / EAN: 6970504213302

Aqara Single Switch Module T1 | Switch module | no Neutral, Zigbee, EU, SSM-U02

CODE: SSM-U02 / EAN: 6970504213302
27,80 GBP without VAT (net)
AC input frequency: 50/60
AC input voltage: 100 - 250
Connectivity technology: Wired & Wireless
Depth: 40
Show more parameters

About product

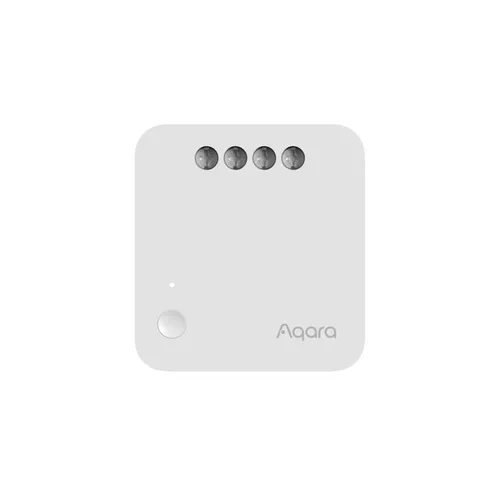

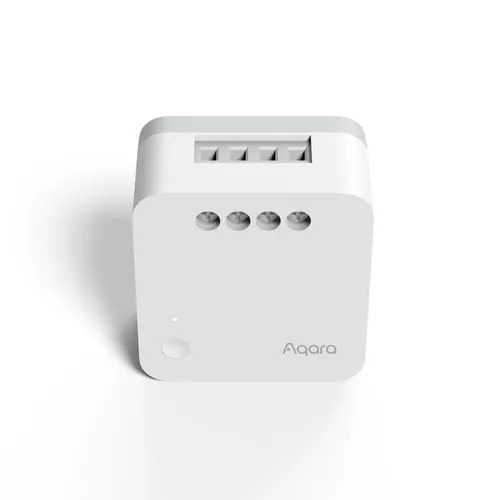

Xiaomi Aqara SINGLE Switch MODULE T1 (without neutral)

The relay is designed to automate the control of lighting or electrical devices from 3 to 1250 watts.


The relay is connected to the phase break and does not require connection to the neutral line. This allows it to be used in conjunction with a regular switch, adding"smart switch" functionality.


In addition to standard fixed switches, the relay also supports bell-type switches. The relay is compact in size and fits easily into an ordinary socket. The remote antenna can be placed behind the plastic switch hood or in the socket.


Specification

Features / filters
AC input frequency 50/60
AC input voltage 100 - 250
Connectivity technology Wired & Wireless
Depth 40
Easy to install Yes
Height 21.4, 21,4,
Housing material Acrylonitrile butadiene styrene (ABS)
Intelligent On/Off Yes
Interface Zigbee 3.0
Mounting type Wall, De perete,
Neutral conductor required No
Operating frequency 2400, 2405 - 2480,
Operating relative humidity (H-H) 0 - 95
Operating temperature (T-T) 0 - 35
Package weight 50
Placement supported Indoor
Power source AC
Product colour White, Alb,
Quantity per pack 1
Sunrise/sunset control Yes
User guide Yes
Waterproof No
Weight 40
Width 42.9, 42,9,
Wireless technology ZigBee
Works with Amazon Alexa Yes
Works with Apple Siri Yes
Works with the Google Assistant Yes

General characteristics
Operating humidity: 5-95% RH
Operating temperature: 0° to +35°C
Power (W): up to 2500 W
Compatible operating systems: iOS, Android
Model: SSM-U02
Controls: via the Mi Home application
Connection type: Zigbee
Power supply
Voltage (V): 100-250 V~, 50/60 Hz
Maximum current: 10 A
Physical characteristics
Width (mm): 40
Thickness (mm): 19,9
Length (mm): 42,9
Functions and features Protection against overheating

Faq

How to control the data relay?

Relay is controlled by Aqara Home, Mi Home application (relay must already be connected to 220V mains)
