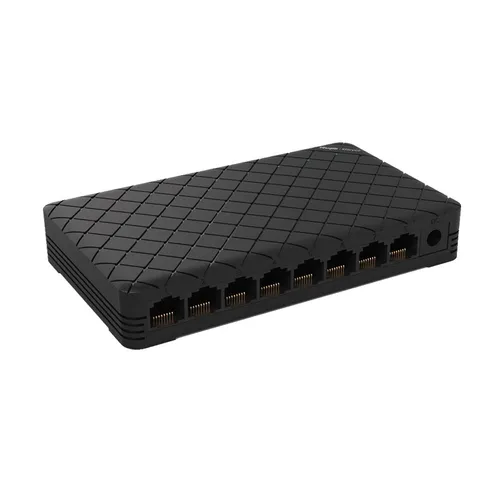

Ruijie Reyee RG-ES08G | Switch | 8x RJ45 1000Mb/s, unmanaged, desktop

EN
Ruijie Real-easy desktop switches, including the RG-ES08G model, are carefully designed for small business, small-scale monitoring and SOHO environments. The series consists of four different models to meet the diverse network requirements of small business customers. The switch is easy to use thanks to a plug-and-play feature that eliminates the need for configuration. In addition, its compatibility with a wide range of devices, such as network cameras, printers and PCs, ensures quick and easy installation.
Built using enterprise-grade materials, the RG-ES08G provides unparalleled performance. The 8-pin RJ45 ports provide support for network cables of varying quality. High-quality components eliminate packet loss or delay during data transmission.
A series of rigorous tests were carried out in the manufacturing process, including an anti-drop test, an anti-collision test, a heat resistance test and a moisture resistance test to ensure trouble-free operation.
The self-adaptation function is supported for network ports. The device requires no configuration and can operate immediately after connection. The power saving function can automatically reduce the power consumption of non-functioning ports, and the fanless design allows the device to operate quietly.
Whether for small businesses, school dormitories, SOHO or home use or monitoring, the Ruijie Reyee RG-ES08G proves to be an optimal choice thanks to its adaptability to various network requirements.
Features / filters | |
Number of LAN ports | 8x [10/100/1000M (RJ45)] |
10G support | No |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
DC input voltage | 9 |
Depth | 85 |
Fanless | Yes |
Flow control support | Yes |
Forwarding rate | 11.904 |
Full duplex | Yes |
Half duplex | Yes |
Height | 23 |
Housing material | Plastic |
Input current | 0.6 |
MAC address table | 4000 |
Manual | Yes |
Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Package type | Box |
Power consumption (typical) | 6.5 |
Power over Ethernet (PoE) | No |
Power source | DC |
Product colour | Black |
Quick start guide | Yes |
Reset button | Yes |
Storage relative humidity (H-H) | 5 - 95 |
Storage temperature (T-T) | -40 - 70 |
Switch type | Unmanaged |
Switching capacity | 16 |
Width | 144 |
Technical data | |
Ports | 8x 10/100/1000M Base-T |
Modes of operation | Half-duplex, full-duplex, auto-negotiation mode Support for automatic MDI/MDIX |
Capacity | 16Gbps |
Packet transmission rate | 11.904Mpps |
MAC | 4K |
Power supply | DC 9.0V / 600mA External |
Maximum energy consumption | ≤6.5W |
Fan | No |
Dimensions | 144mm*85mm*23mm |
Operating temperature | 0 °C ~ 40 °C |
Storage temperature | -40 °C ~ 70 °C |
Operating humidity | 10% ~ 90% RH |
Storage humidity | 5% ~ 95% RH |
