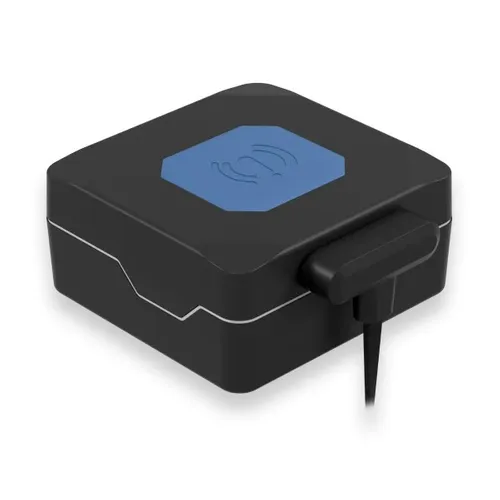

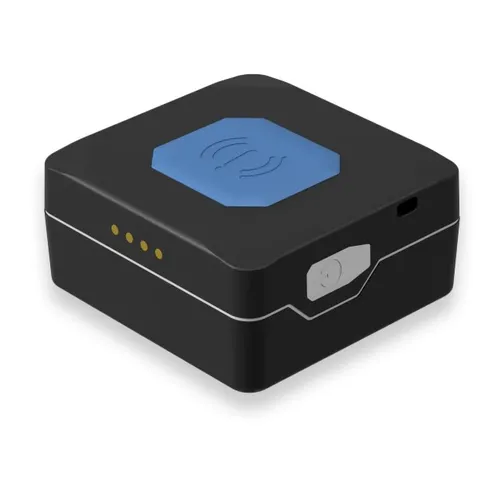

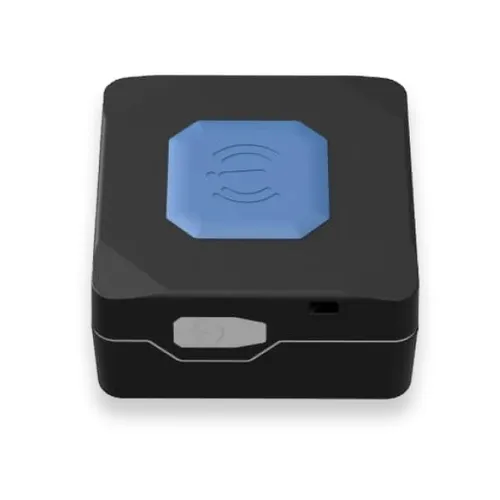

This mini tracker is designed for people, pets, car monitoring, employee control, sports events, etc. The IP67 waterproof housing provides outdoor use in harsh conditions and the high battery capacity increases the range of applications where long battery life is required. In addition, TMT250 also supports Handsfree function, configuration update and software via Bluetooth.
A large emergency button can save lives in an accident. A direct voice call or GPRS/SMS messaging can be activated at the touch of a button.
The TMT250 can monitor the user's vertical or horizontal position without pressing any button and activate an alarm immediately if the configured position changes.
The TMT250 has a watertight housing (IP67) which provides increased protection against dust and water ingress.
A built-in accelerometer and gyro sensor is used to track falls more closely to avoid false alarms.
New, modern design, small casing with a large 800mAh battery. Dimensions are only 44x43x20 mm. Such a device can be easily hidden and operate for long hours without charging.
The integrated Bluetooth module allows you to connect your wireless headset and connect to various other Bluetooth devices. Make phone calls to an employee using a Bluetooth headset. No unauthorized calls! Make sure that your employee is always safe and uses the headset hands-free!
| Features / filters | |
| Built-in memory | 128MB |
| Communication type | 2G, Bluetooth, GPS, |
| Backup battery | Yes |
| Built-in sensors | Accelerometer, Gyroscope, |
| IP Rating | IP67 |
| Working temperature | -25°C to +55°C |
| Module | |
| Model | TM2500 |
| Technology | GSM/GPRS+GPS+BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS |
| Receiver | 33 channel |
| Sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Mobile network | |
| Technology | GSM |
| Band 2G | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data rate | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data handling | SMS (text/data) |
| Power supply | |
| Charging voltage | 5V DC |
| Battery | 800 mAh Lithium-ion battery (3.04 Wh) |
| Energy consumption | 1.5 mA (Ultra Deep Sleep), 3.5 mA (Deep Sleep), 4 mA (Online Sleep), 8 mA (GPS Sleep), 44 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Headset |
| Interfaces | |
| Configurable buttons | 2 |
| GNSS antenna | internal with high profit |
| GSM antenna | internal with high profit |
| USB | 2.0 USB magnetic contact |
| LED | 1 RGB LED |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 44 x 43 x 20 mm (L x W x H) |
| Weight | 40 g |
| Working environment | |
| Ambient temperature during operation | -25 °C to +55 °C |
| Ambient humidity during operation | 5% is 95% without condensation |
| Leakage class | IP67 |
| Additional features | |
| Sensors | Accelerometer, gyroscope |
| Configuration and firmware update | FOTA Web, FOTA, FMB Configurator (USB, Bluetooth), FMBT mobile application |
| SMS | Configuration, events, debugging |
| GPRS commands | Configuration, Debugging |
| Time synchronization | GPS, NITZ, NTP |
| Certificates | |
| Regulations | CE/RED, SAR |
