The A720R is an advanced router designed for high-traffic Internet browsing and helps run applications at three times the speed. Equipped with 4 omni-directional antennas, the A720R delivers Wi-Fi speeds of up to 1167Mbps. Meanwhile, the high-speed WAN port and LAN ports provide a stable data stream over a wired connection. It's an ideal choice for homes or offices with high demand for Internet access.

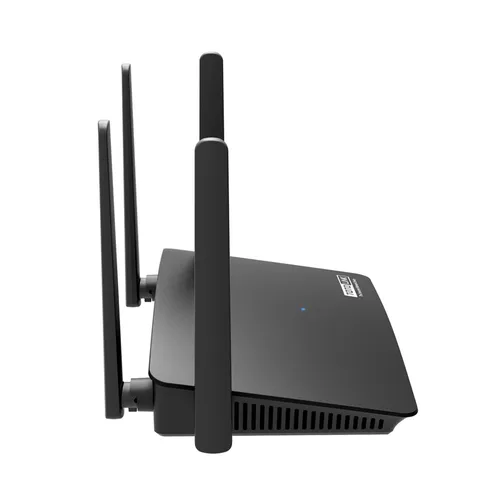

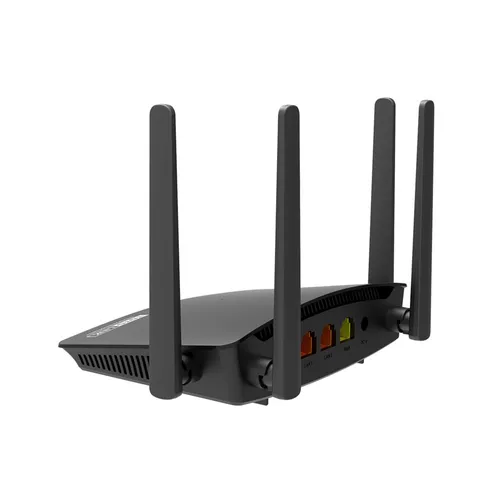

The A720R is equipped with four external omni-directional antennas that offer higher wireless performance and extends the wireless signal to a wider range. The router is compliant with the IEEE802.11ac Wi-Fi standard, operating simultaneously on 2.4GHz and 5GHz frequencies and providing speeds of up to 1167Mbps.
Beamforming technology allows intensive signal transmission toward other wireless end devices such as cell phones, tablets and laptops, improving bandwidth efficiency and reducing dead zones and surrounding unnecessary RF interference.
IPTV supportsIGMP Proxy/Snooping, ridge and Tag VLAN to optimize IPTV streaming. It's easy to share media at home with your family, enjoy online movies and catch the latest series anytime.
Parental Control allows you to create a safe and healthy Internet environment for your children. With support for various Firewal rules, parents can block websites with content unsuitable for children.
The A720R provides several operating modes, such as "Gateway", "Bridge Mode", "WISP Mode", "Repeater Mode", selectable for different scenarios. Users can choose the appropriate operation mode according to the current environment and requirements.
| Equipment | |
| Interface | 2 x 100Mbps LAN ports 1 x 100Mbps WAN port |
| Power supply | DC 9V/0.8A |
| Button | 1 x RST/WPS button |
| LED indicator | 1 x SYS |
| Antenna | 2 x fixed 2.4GHz antennas (5dBi) 2 x fixed antennas 5GHz (5dBi) |
| Dimensions (L x W x H) | 142 x 95 x 41mm |
| Wireless network | |
| Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| RF frequency | 2.4GHz/5GHz |
| Data transmission speed | 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
| EIRP | 2.4GHz < 20dBm 5GHz < 20dBm |
| Wireless network security | WPA/WPA2 mixed |
| Reception sensitivity | 2.4G:11b 11M：-81dBm@8% PER 11g 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 5G: 11a 54M：-68dBm@10% PER 11n HT20 MCS7：-65dBm@10% PER HT40 MCS7：-62dBm@10% PER 11ac VHT80 MCS9：-51dBm@10% PER |
| Software | |
| Mode of operation | Gateway mode Repeater mode AP mode WISP mode |
| Home | Quick setup Basic configuration Advanced configuration QR code LED Logout Reboot |
| Network | WAN settings LAN settings DDNS settings IPTV Setting IPv6 Setting |
| WAN type | Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
| Wireless network | Basic configuration Guest network (multiple SSIDs) Wireless network scheduling Access control Advanced configuration |
| Parental control | Control of Internet usage time based on MAC address |
| QoS | Up/down speed control on the WAN, Bandwidth control based on IP address |
| Device management | Static routing Routing table IP/MAC binding |
| Security | MAC Filtering IP/Port Filtering URL filtering |
| NAT | Virtual server (port forwarding) DMZ VPN passthrou |
| Tools | Firmware update Time configuration Remote management Password settings Restart schedule System log and so on |
| Other | |
| Package contents | A720R wireless router x 1 Power adapter x 1 Ethernet cable x 1 Quick installation guide x 1 |
| Environment | Operating temperature: 0℃~50 ℃ (32 ℉~122℉) Storage temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
