Routerboard RBD52G 5HacD2HnD TC HAP ac² is a wireless access point ac and wireless access point ac router that provides Wi-Fi coverage for frequencies in two ranges: 2.4 GHz and 5 GHz. Five 10/100/1000 Mbps Ethernet ports provide Gigabit connections for wired devices and USB can be used to store files or a 4G/ LTE modem.

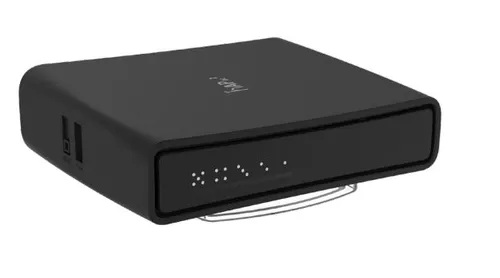

The new, universal Tower type housing allows you to set the device in a horizontal or vertical position. A wall mount kit is also included. The device operates on Mikrotik RouterOS system with a level 4 license.
The HAP ac2 dual-band wireless router can be powered from a power outlet or via passive PoE. The power supply is included with the device. HAP ac2 is preconfigured, so just connect the power and cable to the Internet and you're done.
| Features / filters | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| AC input voltage | 12 - 30 |
| Antenna gain level (max) | 2.5 |
| Built-in processor | Yes |
| DC-in jack | Yes |
| Depth | 119 |
| Ethernet LAN (RJ-45) ports | 5 |
| Ethernet LAN data rates | 10,100,1000 |
| Flash memory | 16 |
| Frequency band | 2412 - 2484, 5150 - 5875 |
| Harmonized System (HS) code | 85176990 |
| Height | 98 |
| Internal | No |
| Internal memory | 128 |
| Maximum data transfer rate | 1167 |
| Maximum data transfer rate (2.4 GHz) | 300 |
| Maximum data transfer rate (5 GHz) | 867 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Number of products included | 1 |
| Operating relative humidity (H-H) | -40 - 50 |
| Operating system installed | RouterOS |
| Placement | Table, Wall |
| Power consumption (max) | 15 |
| Power over Ethernet (PoE) | Yes |
| Product colour | Black |
| Receiver sensitivity | -100, -96, -94, -80, -78, -75 -73, -70 |
| Security algorithms | IPSec |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Width | 34 |
| Basic technical parameters: | |
| Product code | RBD52G-5HacD2HnD-TC |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| Number of processor cores | 4x |
| Nominal processor frequency | 716 MHz |
| Dimensions | 34 x 119 x 98 mm |
| Operating system | RouterOS |
| Licence level | 4 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Type of storage | FLASH |
| Tested ambient temperature | From -40 ° C to 50 ° C |
| PoE in | Passive PoE |
| PoE at the input Voltage | 18–28 V. |
| Number of DC inputs | 2 (DC socket, PoE-IN) |
| DC socket input voltage | 12-30 V. |
| Maximum energy consumption | 21 W. |
| Maximum power consumption without annexes | 16 W. |
| Wireless | |
| Alternating current velocity | AC1200 |
| 2.4 GHz wireless Maximum transmission speed | 300 Mbit / s |
| Number of 2.4 GHz wireless communication chains | 2 |
| 2.4 GHz wireless standards | 802.11b/g/n |
| dBi antenna gain for 2.4 GHz | 2.5dBi |
| 2.4 GHz wireless model | IPQ-4018 |
| 2.4 GHz wireless generation | Wi-Fi 4 |
| 5 GHz wireless transmission speed Max | 867 Mbit / s |
| Number of 5 GHz wireless chains | 2 |
| 5 GHz wireless standards | 802.11a/n/ac |
| dBi antenna gain for 5 GHz | 2.5dBi |
| 5 GHz wireless model | IPQ-4018 |
| 5 GHz wireless generation | Wi-Fi 5 |
| 10/100/1000 Ethernet ports | 5x rj45 |
| Number of USB ports | 1 |
| USB power reset | Yes |
| Type of USB socket | USB type A. |
| Maximum USB current (A) | 1 |
| Mode button | Yes |
| Casing certificates | " RED, FCC, IC, EAC, ROHS |
MicroTik hAP ac2 tower has two frequency ranges: 2.4 GHz and 5 GHz.
It can be used to store files or a 4G/ LTE modem.
