Discover new internet capabilities with the TP-Link Archer AX55 Pro. With WiFi 6 technology and speeds of up to 3.0 Gbps (2402 Mbps in the 5 GHz band and 574 Mbps in the 2.4 GHz band), you can enjoy seamless streaming, online gaming and lightning-fast downloads. The 160 MHz channel width in the 5 GHz band doubles the available bandwidth, allowing you to watch 8K content without lag.
The Archer AX55 Pro also offers stunningly fast wired connections. A 2.5 Gigabit port and a 1 Gigabit port allow you to take full advantage of the gigabit speeds offered by your ISP.

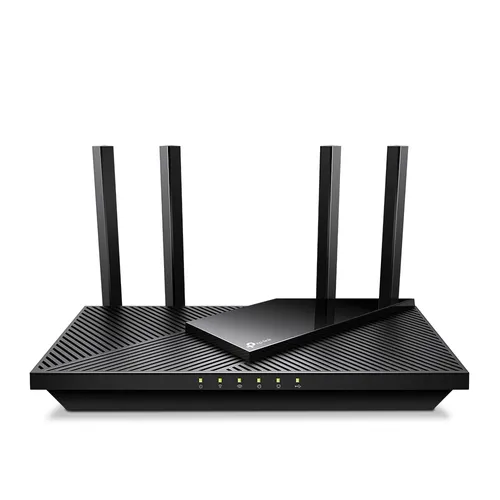

Four external high-gain antennas combined with Beamforming technology ensure access to a reliable wireless network throughout the house and smooth and stable connections for all users.
OFDMA technology quadruples network capacity, allowing simultaneous data transmission to more devices. Gaming, watching video and working are possible at the same time without worrying about buffering. Qualcomm's advanced processor and fast memory ensure stable connections and low latency even during heavy network loads.
The larger heatsink and improved housing of the TP-Link Archer AX55 Pro means better cooling of the chipsets, which translates into higher performance of the entire network. As a result, the router works reliably and efficiently, regardless of the conditions.
Devices on your home network can access remote VPN servers without having to install VPN software on each of them. The Archer AX55 Pro can simultaneously support both VPN and regular Internet connections for security and flexibility.
With Amazon Alexa compatibility, you can control the router with voice commands, making daily network management even easier. TP-Link HomeShield provides enhanced protection against the latest threats, giving you peace of mind and network security. An ideal router that is perfect for the home. It provides fast and stable Internet.
| Standards | Wi-Fi 6 - IEEE 802.11ax/ac/n/a 5 GHz - IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi network speeds | AX3000 - 5 GHz: 2402 Mbps (802.11ax, HE160) - 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi network coverage | - 4 Powerful antennas The antennas provide enough power to boost the network signal and cover a large area - Beamforming Beamforming directs the network signal to the client to increase Wi-Fi coverage - High-powered front-end module Improves transmission power to enhance signal transmission range |
| WiFi network performance | High - Two bands Distributes devices between available bands for optimal performance - OFDMA Provides the ability to communicate with multiple Wi-Fi clients 6 - Airtime Fairness Improves network performance by reducing inefficient use of bandwidth - DFS Enables dynamic frequency selection - 4 data streams Devices have even more bandwidth available |
| Modes of operation | - Router - Access point |
| TRANSMISSION SECURITY | |
| Network protection | SPI firewall Access control IP and MAC address binding Application Layer Gateway HomeShield suite Real-time protection for IoT devices Blocking malicious sites Intrusion prevention system Prevention of DDoS attacks Home network scanning |
| Guest Network Function | - 5 GHz guest network - 2.4 GHz guest network |
| VPN server | - OpenVPN - PPTP - L2TP |
| VPN Client | - OpenVPN - PPTP - L2TP |
| WiFi network encryption | - WPA3* - WPA2 - WPA - WPA/WPA2-Enterprise (802.1x) |
| HARDWARE FEATURES | |

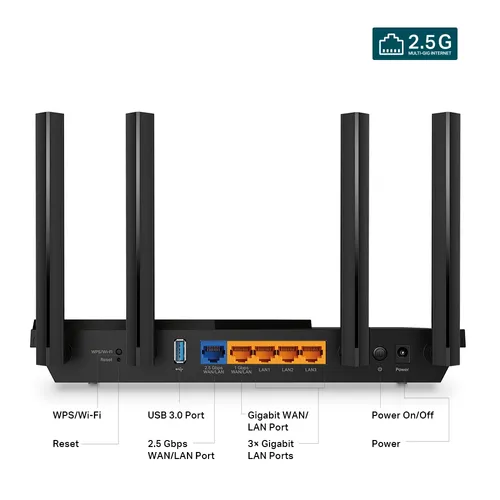

| Ethernet Ports | - 1 2.5 Gigabit WAN/LAN port - 1 Gigabit WAN/LAN port - 3 Gigabit LAN ports |
| Supported USB types | 1 USB 3.0 port Supported partition types: NTFS, exFAT, HFS , FAT32 Supported features: Apple Time Machine FTP server Media server Samba server |
| Buttons | Wi-Fi/WPS Power On/Off. Reset |
| Power supply | - 12 V/ 1.5 A |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| Service packages | HomeShield |
| OneMesh™ | OneMesh™ Support OneMesh™ helps you create a flexible network that, when combined with TP-Link's OneMesh™ products, covers the entire area of your home, without having to replace existing devices or purchase completely different solutions to support your Wi-Fi ecosystem. |
| Parental control | - User profiles - Content filtering library - Family time - Sleep time - Access blocking - Rewarding additional access time - Statistics for spending time online - Suspending internet access - Weekly and monthly reports |
| WAN types | Dynamic IP Address Allocation Static IP address assignment PPPoE PPTP L2TP |
| Quality of Service | QoS priorities for devices |
| Cloud service | - Automatic software updates - OTA software updates - TP-Link ID - DDNS |
| NAT redirection | - Port forwarding - Port Triggering - DMZ - UPnP |
| OTHER | |
| System requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other browser with JavaScript enabled Cable Modem or DSL (if required) Contract with an internet service provider (internet access) |
| Certificates | FCC, CE, RoHS |
| Work environment | Permissible operating temperature: 0℃~40℃ Permissible humidity: 10%~90%, non-condensing |
| DATA OBTAINED DURING TESTS | |
| WiFi transmission power | - CE: <20dBm(2.4GHz) <23dBm(5..15GHz~5.25GHz |
| WiFi signal reception sensitivity | - 2.4GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm - 5 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm, 11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm. |
| PACKAGE CONTENTS | - Archer AX55 Pro router - Power supply - RJ45 cable - Quick installation guide |
