TP-Link CPE710 | CPE | 5GHz, 867Mb/s, 1x RJ45 1000Mb/s, 23dBi

CODE: TL-CPE710 / EAN: 6935364089702

TP-Link CPE710 | CPE | 5GHz, 867Mb/s, 1x RJ45 1000Mb/s, 23dBi

CODE: TL-CPE710 / EAN: 6935364089702
74,19 GBP without VAT (net)
Out of stock
Maximum wireless transmission speed: 867 Mb/s
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
Operating frequency: 5 GHz
Show more parameters

About product

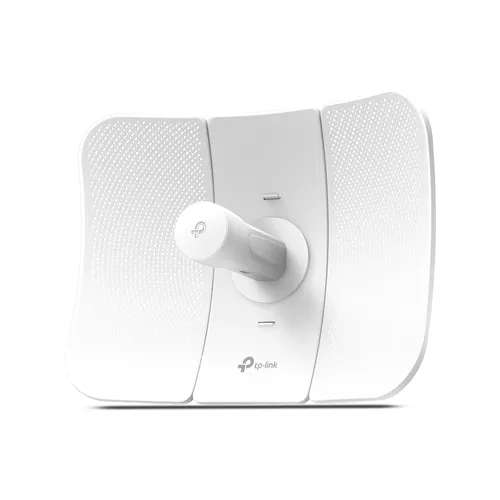

Access Point TP-LINK CPE710

TP-LINK CPE710 Universal Access Point is easy to install, ensures high quality and reliability. It has been designed for outdoor operation. It has a IP65 protection level, which means that the device is protected against electrostatic discharges up to 15kV, lightning discharges up to 6kV and is resistant to any weather conditions.

TP-LINK CPE710 5GHZ 867MBPS 23DBI OUTDOOR CPE

Good speed without data loss

The TP-LINK CPE710 access point operates with minimal interference and latency even in high winds. It has 128MB RAM and runs on a Qualcomm processor with a single 740MHz Wi-Fi bandwidth. It supports Wi-Fi 802.11 in the 5 MHz band (2 × 2 MIMO 802.11ac), which allows for transmission speeds of up to 867 Mbps.

TP-LINK CPE710 5GHZ 867MBPS 23DBI OUTDOOR CPE

Good performance over long distances

The CPE710 has a single external antenna with horizontal and vertical beam parameters of 9 and 7 degrees, respectively. The gain is 23 dB, which allows to transmit data over long distances. It supports Power over Ethernet (PoE) to avoid unnecessary cabling.

TP-LINK CPE710 5GHZ 867MBPS 23DBI OUTDOOR CPE

Pharos Control - centralized network management

The CPE710 access points come with the centralized network management software Pharos Control, which allows you to easily manage all devices on your network from a single computer. Discovery, status monitoring, firmware upgrades, and other network management functions can be performed using Pharos Control. Pharos' intuitive web interface provides an alternative way to manage your network and allows professional users to make more detailed settings.

TP-LINK CPE710 5GHZ 867MBPS 23DBI OUTDOOR CPE

Main advantages

  • 802.11ac provides wireless speeds of up to 867 Mbps in the 5 GHz band
  • Directional 2×2 MIMO antenna with high gain of 23 dBi, ideal for transmission over long distances
  • Precise beam steering, reduced latency and interference reduction

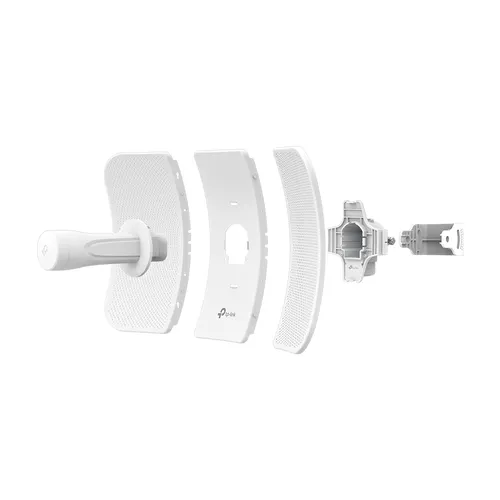

  • Innovative snap-on components improve installation, strong construction ensures stability even in strong winds
  • With an IP65 certified enclosure, 15 kV ESD protection and 6 kV lightning protection, the device can be used in all weather conditions
  • Free access to Pharos Control allows you to manage all your devices from one place
  • Passive PoE support gives you the freedom to choose a location for the device and ensures convenient installation

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Maximum wireless transmission speed 867 Mb/s
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
Operating frequency 5 GHz
Wireless network standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n,
2.4 GHz No
5 GHz Yes
AC input frequency 50/60
AC input voltage 100 - 240
Antenna gain 21dBi - 30dBi
Antenna gain level (max) 23
Auto Wireless Distribution System (WDS) Yes
Automatic channel selection Yes
Built-in processor Yes
Cables included AC
Certification CE, FCC, RoHS, IC
Channel bandwidth 80
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, Linux
CPU frequency 750 MHz
Depth 280
Dynamic Frequency Selection (DFS) Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000
Flash memory 16
Frequency band 5.15 - 5.85
Harmonized System (HS) code 85176990
Height 207
Housing material Plastic
IGMP snooping Yes
Internal memory 128
International Protection (IP) code IP65
LED indicators Power
MAC address filtering Yes
Maximum data transfer rate 867
MIMO Yes
MIMO Type 2x2
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) -40 - 70
Output current 0.6
Output voltage 24
Package type Box
Placement Pole
PoE adapter included Yes
Power over Ethernet (PoE) Yes
Processor frequency 750
Product colour White
Quick start guide Yes
RAM memory 128MB
Reset button Yes
Security algorithms HTTPS,SNMP,SSH,WPA,WPA2,WPA2-AES,WPA2-PSK,WPA2-TKIP
Service Set Identifier (SSID) features Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Storage relative humidity (H-H) 5 - 95
Storage temperature (T-T) -40 - 70
Syslog Yes
Transmitting power 27
Type of device power supply Passive PoE
Universal Plug and Play (UPnP) Yes
Web-based management Yes
Width 366
Wireless isolation Yes

Hardware features
Manufacturer TP-Link
Model CPE710
Processor Qualcomm 750 MHz processor, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB flash memory
Ports 1 shielded Ethernet 10/100/1000 Mbps port (LAN/PoE)
1 Reset button
Power supply Passive PoE over LAN ( 4.5-pin; -7.8-pin)
Voltage: 16-27 V DC
Dimensions (H x W x D) 366 mm x 280 mm x 207 mm
(14.4 x 11.0 x 8.1 inches)
Antenna gain 23 dBi
Antenna beamwidth 9° (azimuth), 7° (elevation)
Security Electrostatic discharge protection 15 kV
Protection against lightning discharges 6 kV
Housing Material: rugged PC plastic for outdoor use
Certified water and dust resistant to IP65
Wireless transmission characteristics
Wireless standards IEEE 802.11a/n/ac
Wireless network speed Up to 867 Mbps (80 MHz, dynamic)
Up to 400 Mbps (40 MHz, dynamic)
Up to 173.4 Mbps (20 MHz, dynamic)
Operating frequency 5.15-5.85 GHz
EIRP Max. 27 dBm (1 dBm resolution tunable)
Software functions
Network configuration WAN: Static/Dynamic/PPPoE
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI firewall/Penetration protection/DOS protection
Access control
Static Routing
Bandwidth control
IP & MAC Address Binding
Wireless network configuration Selectable channel width: 20/40/80 MHz
Automatic channel selection
Transmission power control
Dynamic frequency selection (DFS)
WDS on/off
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP),
SSID broadcast on/off
Multi-SSID with VLAN tagging (only in AP mode)
Distance/ACK Timeout settings
Filtering by MAC address
Advanced Wi-Fi Settings:
Beacon interval/RTS threshold/Fragmentation threshold/DTIM interval/App isolation/Short GI/Multimedia Wi-Fi
Long range PtP
Management Remote device detection and management via Pharos Control application
Web-based management via HTTP/HTTPS
System logs
SNMP agent (v2c)
Ping Watch Dog
Dynamic DDNS
SSH server
System tools Wireless signal quality indicators:
Signal strength/noise/CCQ transmission/Processor/memory
Monitoring: Throughput/Stations/Interfaces/ARPs/Routes/WAN/DHCP
Spectrum analysis
Speed test
Ping
Traceroute
Antenna Setup
System optimizations IGMP Snooping/Proxy optimized for multicast applications
Features of the PoE adapter
Dimensions (H x W x D) 85.8 mm × 43.9 mm × 29.7 mm
Ports 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Buttons Remote reset button
LED status Green
Input 100-240 V AC, 50/60 Hz
Output Max. 24 V DC, 0.5 A
4, 5-pin; -7, 8-pin. (Supports up to 60 m PoE power)
Performance >84,29%
Certificates CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Other
Certificates CE, FCC, RoHS, IP65, IC
Contents of the package CPE710 Outdoor Device
Passive PoE 24 V 0.5 A Adapter
Mounting straps
Power cord
Quick Installation Guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX, or Linux.
Note: Recommended browsers: Google Chrome, Safari and Firefox. It is not recommended to use IE browser.
Work environment Operating temperature: -40℃~70℃ (-40℉~158℉)
Storage temperature: -40℃~70 (-40℉~158℉)
Operating air humidity: 10%~90%, non-condensing
Storage humidity: 5%~95%, non-condensing

Faq

What band does the device work in?

Operating frequency: 5 GHz
