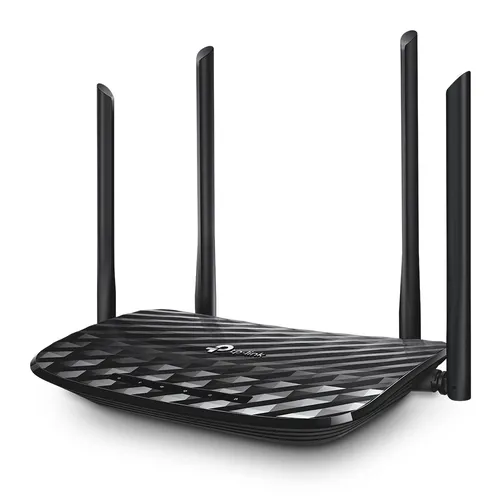

TP-Link TL-EC230-G1 | WiFi Router | AC1350, MU-MIMO, 5x RJ45 1000Mb/s

CODE: TL-EC230-G1 / EAN: 6935364086336

TP-Link TL-EC230-G1 | WiFi Router | AC1350, MU-MIMO, 5x RJ45 1000Mb/s

CODE: TL-EC230-G1 / EAN: 6935364086336
37,11 GBP without VAT (net)
Out of stock
3G: No
3G/4G USB modem compatibility: No
4G: No
Antenna type: Internal & external
Show more parameters

About product

Dual-band 2.4GHz and 5GHz AC1350 network with infinite capabilities

TP-LINK EC230-G1 router (Archer C6 on steroids) broadcasts two separate wireless networks in 2.4GHz and 5GHz bands, ensuring highest quality wireless connections. Thanks to that, we have the option to use two dedicated wireless networks simultaneously, with speeds satisfying for even the most demanding users. Enjoy less demanding activities in the 2.4GHz band, such as email and web browsing, while using the 5GHz band for demanding, delay-sensitive uses such as online gaming or high-quality video streaming.

1

Endless entertainment thanks to 2.4GHz and 5GHz dual-band AC1200

The EC230-G1 broadcasts 2 separate wireless networks in the 2.4GHz and 5GHz bands, providing very high wireless performance. This gives you the ability to use two dedicated wireless networks simultaneously - with speeds suitable for even the most demanding applications. With this solution, you can enjoy everyday, less demanding activities, such as email and web browsing, by connecting in the 2.4GHz band while using the 5GHz band for demanding, delay-sensitive applications such as high-quality video streaming or online gaming.

2

High-quality antennas that provide coverage throughout the home

Four external antennas and one internal antenna will deliver Wi-Fi to every corner of your home. You can stop worrying about network availability and enjoy a fast connection whether lying on the couch or relaxing on the balcony. Equipped with a powerful chipset, the EC230-G1 always provides excellent Wi-Fi coverage. The 2.4GHz band is unrivalled, eliminates Wi-Fi "dead zones" and far exceeds the capabilities of other AC1350 routers.

3

MU-MIMO - higher speed, throughput and efficiency

The EC230-G1 gives you much more than just faster Wi-Fi. By increasing the efficiency of communication between devices, you can be sure of optimal network operation. MU-MIMO 2x2 technology allows you to communicate with two devices simultaneously.

4

Even faster gigabit connections

With one Gigabit WAN port and four Gigabit LAN ports, the connection can be ten times faster than standard Ethernet connections. You will be impressed by the capabilities of the EC230-G1.

Gigabit tp-link archer router

Easy and quick configuration with the Tether application

Free Tether application available for everyone! Download it today to your Android or iOS device. This app makes it easy to set up your router and adjust your network settings.

Gigabit tp-link archer c6 wifi wi-fi router

Specification

Features / filters
3G No
3G/4G USB modem compatibility No
4G No
Antenna type Internal & external
Antennas quantity 5
Depth 144
DHCP client Yes
DHCP server Yes
DMZ support Yes
Dynamic DNS (DDNS) Yes
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000
Ethernet LAN interface type Gigabit Ethernet
Ethernet WAN Yes
Firewall Yes
Firewall security DoS, SPI Firewall, IP and MAC Address Binding
Height 35
Mobile network generation 4G
MU-MIMO technology Yes
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
On/off switch Yes
Output current 1
Output voltage 12
Port forwarding Yes
Power source type AC
Product colour Black
Product type Tabletop router
Reset button Yes
Security algorithms 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
SIM card slot No
Supported protocols IPv4, IPv6
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Web-based management Yes
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width 230
WPS push button Yes

System
Working environment
System requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java enabled browser
Cable or DSL modem
Agreement with Internet service provider (Internet access)
Operating temperature 0℃~40℃ (32℉ ~104℉)
Storage temperature -40℃~70℃ (-40℉ ~158℉)
Operating air humidity 10%~90%, non-condensing
Storage humidity 5%~90%, non-condensing
Package contents
Package contents Wireless router EC230-G1
Power supply
RJ45 Ethernet cable
Quick Installation Guide
Equipment features

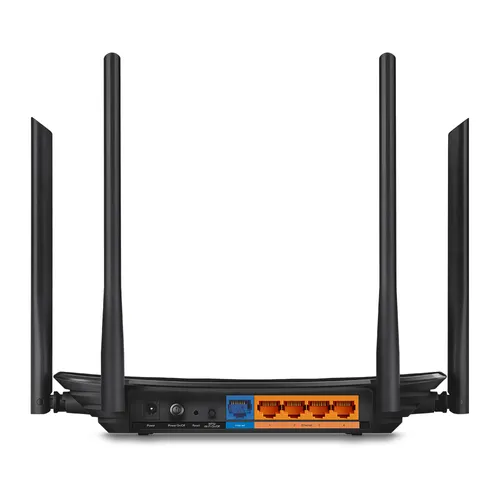

Ports 4 LAN ports 10/100/1000Mbps, 1 WAN port 10/100/1000Mbps
Buttons Reset Button, Power Button, WPS Button / Wi-Fi On/Off
Power supply 12V/1A
Dimensions (S x G x W) 230 × 144 × 35 mm (9,1 × 5,7 × 1,4 inches)
Antenna 4 fixed omnidirectional antennas
Wireless transmission characteristics
Wireless standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency of operation 2.4GHz and 5GHz
Transmission speed 5GHz: up to 867Mbps
2.4GHz: up to 450Mbps
Receiver sensitivity 5GHz:
11a 6Mb/s:-93dBm；11a 54Mb/s:-78dBm；
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mb/s:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm；
EIRP CE EIRP: Maximum 20 dBm (2.4GHz); Maximum 23 dBm (5GHz)
Wireless transmission functions On/Off wireless receiver, WDS Bridge, WMM,
Wireless network statistics
Wireless transmission security 64/128-bit encryption WEP,WPA / WPA2,WPA-PSK / WPA2-PSK
Software functions
WAN Dynamic IP address, Static IP address, PPPoE, PPTP (Dual Access), L2TP (Dual Access), BigPond
Management Access control, Local management, Remote management
DHCP Server, DHCP Client List, Address Booking
Port forwarding Virtual server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Access control Parental control, Local management panel access control, Host list, White list, Black list
Firewall protections DoS, SPI Firewall, IP and MAC address binding
Protocols IPv4, IPv6
Guest Network function 2.4GHz, 5GHz
VPN server OpenVPN，PPTP VPN

Support

Guides

Downloads

Operating instructions (ENG) Download
