TP-Link TL-WPA8630 KIT | Powerline AV1300 Wi-Fi Kit | 1300Mb/s

CODE: TL-WPA8630P / EAN: 6935364093662

TP-Link TL-WPA8630 KIT | Powerline AV1300 Wi-Fi Kit | 1300Mb/s

CODE: TL-WPA8630P / EAN: 6935364093662
114,90 GBP without VAT (net)
Out of stock
Maximum wireless transmission speed: 1350 Mb/s
Number of LAN ports: 3x 10/100/1000BaseTX (RJ45)
Wireless network standards: IEEE 802.11a,  IEEE 802.11ac,  IEEE 802.11b,  IEEE 802.11g,  IEEE 802.11n,
AC input frequency: 50
Show more parameters

About product

Enjoy excellent Wi-Fi coverage throughout your home

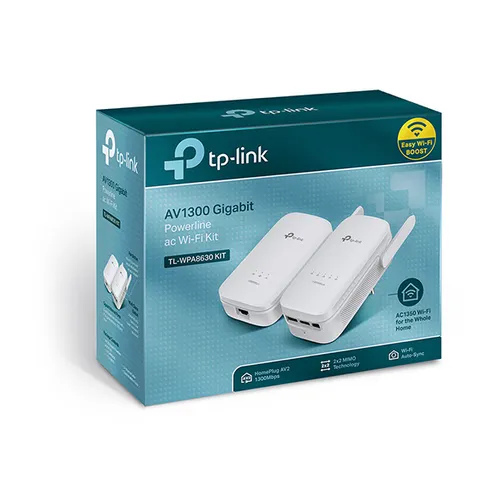

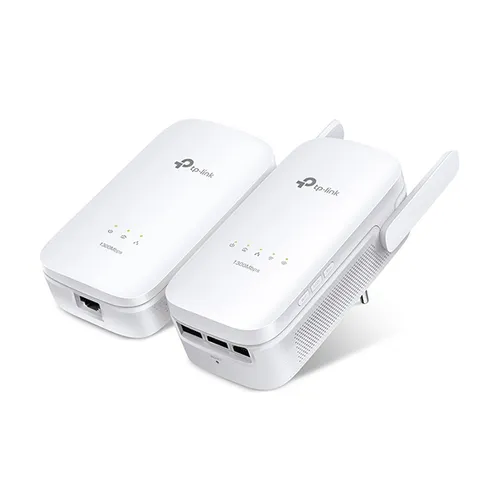

The TP-Link TL-WPA8630 KIT starter set enables you to extend the range of Wi-Fi networks in the whole house, as well as to create a unified network using the existing electrical installation, thus providing access to high-speed Internet wherever you have an outlet. The set consists of TP-Link TL-PA8010 and TP-Link TL-WPA8630 adapters.

TL-WPA8630-0

Extend your Wi-Fi network with existing electrical wiring

Connect the TL-WPA8630P to your Internet connection and share the network with all your favorite wired and wireless devices anywhere in the house. The adapter distributes the Internet over the entire electrical network. Simply plug another adapter into every outlet and have the Internet all over the house, without having to install extra cables in every room. The advanced HomePlug AV2 technology not only provides ultra-fast data transmission, but also a wide range in every corner of your home.

TL-WPA8630-1

Pair it up, pair it up and use it!

Press the "Pair" button on both adapters to create a secure network. With the push of a button, you can access the Internet throughout your home. The adapter is energy efficient and saves up to 85% energy. With a fast Internet connection, you can watch online videos, play online games, stream HD, 3D and even 4K videos, and download large amounts of data.

TL-WPA8630-2

TP-LINK TL-WPA8630 PUTTY

  • Dual-band AC1350 Wi-Fi with a total speed of 1350Mbps

  • HomePlug AV2 - provides very high data transmission speeds in the electrical network up to 1300Mbps

  • 2x2 MIMO - allows you to create several simultaneous connections, so you can enjoy higher power line speeds and better stability

  • Automatic Wi-Fi sync - makes it easy to add more extensions to your network by evenly synchronizing settings such as SSID, password, Wi-Fi schedule and schedule LEDs for all devices on your network

  • Wi-Fi Clone - automatically copies the network name (SSID) and the router's password with one press of the Wi-Fi clone button

  • Plug & Play - Connect, pair and use your network in minutes

    • Specification

    Features / filters
    Maximum wireless transmission speed 1350 Mb/s
    Number of LAN ports 3x 10/100/1000BaseTX (RJ45)
    Wireless network standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
    AC input frequency 50
    AC input voltage 230
    Built-in power socket Yes
    Cables included LAN (RJ-45)
    Certification CE
    Depth 75
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 3
    Ethernet LAN data rates 10,100,1000
    Ethernet LAN interface type Gigabit Ethernet
    Frequency range 2400 - 5000
    Height 42
    LED indicators Power, Reset, WLAN
    Linux operating systems supported Yes
    Mac compatibility Yes
    Mac operating systems supported macOS
    Manual Yes
    Maximum data transfer rate 1200
    Maximum operating distance 300
    Modulation OFDM
    Networking standards IEEE 1901,IEEE 802.3,IEEE 802.3u
    Operating relative humidity (H-H) 10 - 90
    Operating temperature (T-T) 0 - 40
    Package depth 190
    Package height 100
    Package weight 1.09
    Package width 230
    Power consumption (standby) 5
    Power consumption (typical) 10.8
    PowerLine standard HomePlug AV2
    Product colour White
    Quantity per pack 2
    Security algorithms 128-bit AES
    Storage relative humidity (H-H) 0 - 90
    Storage temperature (T-T) -40 - 70
    Sustainability certificates RoHS
    Throughput through the electric network 1300Mb/s
    Top Wi-Fi standard Wi-Fi 4 (802.11n)
    Wi-Fi Yes
    Wi-Fi standards 802.11b,802.11g,Wi-Fi 4 (802.11n)
    Width 152
    Windows operating systems supported Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7

    Equipment features
    Plug type EU
    Standards and protocols HomePlug AV2, IEEE 1901,
    IEEE 802.3,IEEE 802.3u,
    IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/ac 5GHz
    Ports 3 Gigabit Ethernet ports
    Buttons Pair, Reset, LED breaker, Wi-Fi Clone
    Power consumption Maximum: 10.8 W (230V/50Hz)
    On standby: 5W (230V/50Hz)
    LED Power, Powerline, Ethernet, 2.4G Wi-Fi, 5G Wi-Fi
    Dimensions (S x G x W) TL-WPA8630： 140.6 x 68 x 45mm (5.5 x 2.7 x 1.8 inches)
    TL-PA8010P： 131×72×42 mm (5.2×2.8×1.7 inches)
    Reach Up to 300 meters/1000 feet over existing electrical wiring
    Software functions
    Quality of Service function ToS
    Support for up to 4 levels of QoS priority
    Support for up to 8 VLAN priority levels
    Transmission security 128-bit AES encryption
    Modulation OFDM
    IGMP IGMP v1/v2/v3
    Other
    Certificates CE, RoHS
    Package contents TL-WPA8630 and TL-PA8010P
    2 * 2-meter Ethernet cable CAT.5e
    Quick Installation Guide
    Box dimensions (S x G x W) 230x190x100 mm (9.1 x 7.5 x 3.9 inches)
    System requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
    Working environment Permissible operating temperature: 0℃~40℃ (32℉~104℉)
    Permissible storage temperature: -40℃~70℃ (-40℉~158℉)
    Permissible air humidity: 10%~90%, non-condensing
    Permissible storage humidity: 5%~90%, non-condensing

    Support

    How to configure TP-Link Powerline adapters

    Introduction to TP-Link Power Line adapters

    Faq

    What can I do if TP-Link network adapters do not work automatically in plug & play mode?

    In most cases TP-Link network adapters will pair automatically. If not, press the pairing buttons to pair them or use the tpPLC tool to do so. For detailed instructions, refer to [APP] or [tpPLC Utility].

    How to add a new adapter to an existing network?

    You can press the pairing buttons to add another device or use the tpPLC tool.

    How can I manage Powerline adapters in MAC or Ubuntu OS?

    For MAC 10.6 or higher, we also provide a Powerline tool to manage our network adapters.

    For Ubuntu or older versions of MAC we do not provide a configuration tool for them, please configure the adapters in Windows. Or use the pairing buttons to pair them and use the web interface to configure our wireless network adapters.

    Do I need to reset the Power-LAN adapters if I changed my router?

    That's not necessary. Just keep the way the existing adapters / extensions connect to the old router. If you want to change the wireless settings of the extension cables to be the same as those of the new router, press the WPS button on the router and then the Wi-Fi button on the card.

    5. Can I install a Powerline device if my router does not have a WPS button?

    Yes, WPS is just one way of copying the SSID / WiFi name from the main router. If there is no WPS button on the router, we can manually copy the Wi-Fi settings.
