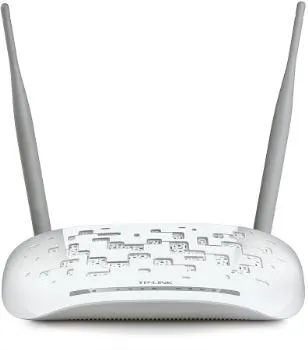

TP-Link TD-W8961ND is a 4-port wireless router with a ADSL 2/2+ modem, which can be used to create a wireless access point. Thanks to the use of N technology ensuring transmission speed up to 300 Mb/s it is an ideal solution for applications sensitive to interference, or requiring wide bandwidth. The multi-language Easy Setup Assistant software enables convenient and quick installation, and the WPS button makes it easy to establish a connection protected by WPA encryption.

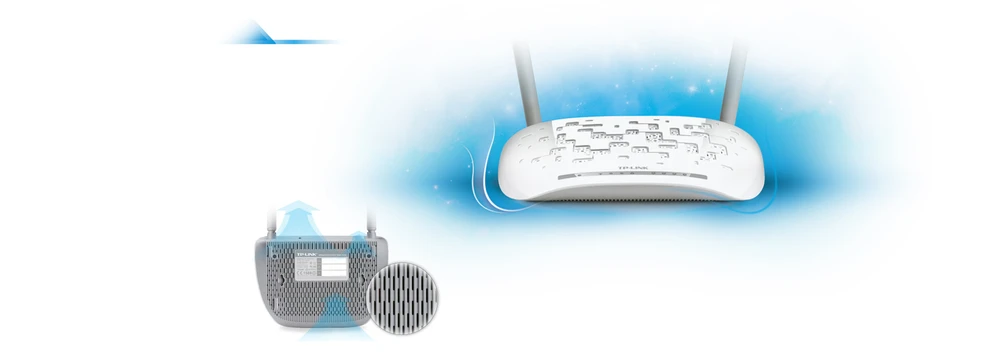

The modern design of the housing not only impresses, but also allows for greater stability and performance. Numerous air vents guarantee the stability of the system and ensure high performance.
Now it's easy to turn your wireless network on and off - just press the wireless switch.
| Equipment features | |
| Ports | 4 RJ45 ports 10/100Mbps 1 RJ11 port |
| Buttons | 1 power switch 1 WPS button 1 wireless switch |
| Power supply | 9VDC/0.85A |
| IEEE standards | IEEE 802.3, 802.3u |
| ADSL standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 ADSL2 standards ITU-T G.992.3 (G.dmt.bis), |
| ADSL2+ standards | ITU-T G.992.5 |
| Dimensions (S x G x W) | 195*130*35 mm (7.7*5.1*1.4 inches) |
| Antenna type | Detachable, omnidirectional, SMA RP connector |
| Antenna gain | 2x5dBi |
| Wireless transmission characteristics | |
| Wireless standards | IEEE 802.11n, 802.11g, 802.11b |
| Frequency of operation | 2,400-2,4835GHz |
| EIRP | <20dBm(EIRP) |
| Wireless transmission security | 64/128 bit WEP, WPA-PSK/WPA2-PSK encryption, MAC address filtering |
| Software functions | |
| Quality of Service function | Prioritization of QoS connections based on IPP/ToS, DSCP and 802.1p |
| Transmission security | NAT firewall, SPI, MAC/IP/URL address filtering, packets and applications; protection against Denial of Service (DoS), SYN Flooding, Ping of Death attacks |
| Management | Configuration via web browser (HTTP), remote management, Telnet, command line interface, SSL for TR-069, SNMP v1/2c, SNMP via EOC, firmware update via network, CWMP(TR-069), network traffic diagnostic tools |
| Port forwarding | Virtual servers, DMZ, ACL (Access Control List) |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - support up to 8 PVC joints |
| Advanced features | Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP |
| Other | |
| Certificates | CE, FCC, RoHS |
| Package contents | TD-W8961ND Splitter RJ11 telephone cable RJ45 network cable Quick Installation Guide CD Power supply |
| System requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux |
| Working environment | Operating temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~90%, non-condensing |
| Installation instructions | Download |
