Ubiquiti UAP-IW-HD | Access point | UniFi, MU-MIMO AC WAVE 2, 5x RJ45 1000Mb/s, PoE+

CODE: UAP-IW-HD / EAN: 0817882025485

Ubiquiti UAP-IW-HD | Access point | UniFi, MU-MIMO AC WAVE 2, 5x RJ45 1000Mb/s, PoE+

CODE: UAP-IW-HD / EAN: 0817882025485
160,11 GBP without VAT (net)
Out of stock
Maximum wireless transmission speed: 2000 Mb/s
Number of LAN ports: 5x 10/100/1000BaseTX (RJ45)
Operating frequency: Dual Band (2.4GHz, 5GHz)
Show more parameters

About product

Scalable enterprise Wi-Fi management

UniFi® is a revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability and a central management controller. The UniFi IW HD AP has a sophisticated industrial design and can be easily installed with the included mounting hardware.

uap iw hd unifi controller icloud

Possibility of expanding the network with additional devices

You have unlimited possibilities when building your wireless network, its size depends only on your needs. Start with one device and add up to thousands more, while maintaining a unified UniFi management system.

unifi uap iw hd unlimited expansion

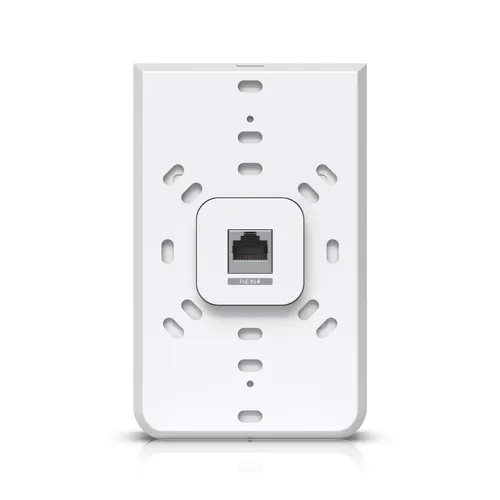

Easy and quick installation

The UniFi IW HD AP has a sophisticated industrial design and can be easily installed with the included mounting hardware.

uap iw hd simple installation

High performance with 802.11ac Wave 2 support

The UniFi IW HD AP is the first UniFi 802.11ac Wave 2 AP with a wall-mounted design. The combination of MU-MIMO technology with 4x4 spatial streaming makes the UniFi IW HD AP deliver up to 125% more performance than a typical Wave 1 AP.

unfi uap iw hd network diagram

Specification

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Maximum wireless transmission speed 2000 Mb/s
Number of LAN ports 5x 10/100/1000BaseTX (RJ45)
Operating frequency Dual Band (2.4GHz, 5GHz)
Wireless network standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
2.4 GHz Yes
5 GHz Yes
AC input voltage 44 - 57
Airtime Fairness (ATF) Yes
Antenna features Integrated antenna
Antenna gain Under 10dbi
Antenna gain level (max) 6
Antenna type Integrated
Antennas quantity 4
Application Indoor
Band steering Yes
Certification CE, FCC, IC
Depth 25.8
Dynamic Frequency Selection (DFS) Yes
Ethernet LAN (RJ-45) ports 5
Ethernet LAN data rates 10,100,1000
Frequency band 2.4/5
Harmonized System (HS) code 85176990
Height 139.7
Internal No
Internal RJ-45 ports quantity 1
LED indicators Yes
Management protocols 802.1Q, QoS, WMM
Maximum data transfer rate 1733
MIMO Yes
MIMO type Multi User MIMO
MIMO Type MU-MIMO 4x4
Mounting kit Yes
Networking standards IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.11w,IEEE 802.1Q,IEEE 802.3af,IEEE 802.3at
Number of products included 1
Number of users 200
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -10 - 60
Placement Wall
Power consumption (max) 23
Power over Ethernet (PoE) Yes
Product colour White
Quality of Service (QoS) support Yes
Rate limiting Yes
Reset button Yes
Security algorithms WEP,WPA,WPA-AES,WPA-Enterprise,WPA-PSK,WPA-TKIP,WPA2,WPA2-EAP,WPA2-TKIP
Throughput data rate 940
Transmitting power 26
Type of device power supply PoE 802.3af/at
Virtual LAN features Tagged VLAN
VLAN support Yes
WAN connection Ethernet (RJ-45)
Web-based management Yes
Weight 210
Wi-Fi data rate (max) 1733
Wi-Fi Multimedia (WMM)/(WME) Yes
Width 86.7
Wireless isolation Yes

Specification

Basic technical parameters
Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight 210 g (7.41 oz)
Network Interfaces (5) 10/100/1000 Ethernet
Buttons Reset
Power supply 802.3af PoE
802.3at PoE+
Supported voltage range 44 to 57 V DC
Power supply UniFi Switch (PoE)
PoE Out 48 V Passthrough (Pins +1, 2; -3, 6)
Power Save Supported
Beam forming Supported
Maximum energy consumption 11 W
23 W: with PoE
TX Power 2.4 GHz: 23 dBm
5 GHz: 26 dBm
Dual-Band antennas (2) Single-Port, Single-Polarity Dual-Band, 2.4 GHz: 1.8 dBi each, 5 GHz: 3.4 dBi each
Single-Band antennas (2) Single-Port, Dual-Polarity, Single-Band, 5 GHz: 6 dBi each
Wi-Fi standards 802.11 a/b/g/n/ac/ac-wave2
Safeguards WEP, WPA-PSK, WPA-Enterprise (WPA/ WPA2, TKIP/ AES) 802.11w/ PMF
BSSID Up to 8 on Radio
Installation Single wall socket (not supplied)
Operating temperature -10 to 60°C (14 to 140°F)
Permissible operating humidity 5 to 95%, non-condensing
Certificates CE, FCC, IC
Advanced traffic management
VLAN 802.1Q
Advanced QoS Bandwidth limitation for each user
Insulation of guests Supported
WMM Voice, Video, Best Effort and Background
Number of simultaneous clients 200+
Supported data rates (Mbps)
Standard Data rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Support

Downloads:

Ubiquiti UAP-IW-HD Datasheet Download

Faq

Power supply methods ?

Power supply method
802.3af PoE
802.3at PoE+

What is the maximum wireless transmission speed ?

Maximum wireless transmission speed: 2000 Mb/s

At what temperature can the device work ?

Operating temperature: -10 to 60°C (14 to 140°F)
