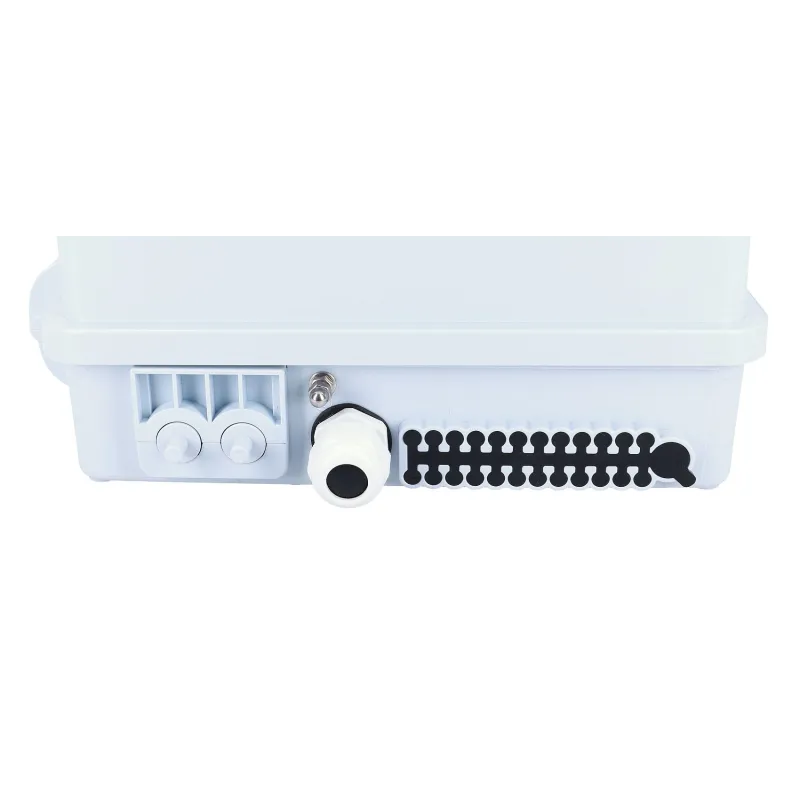

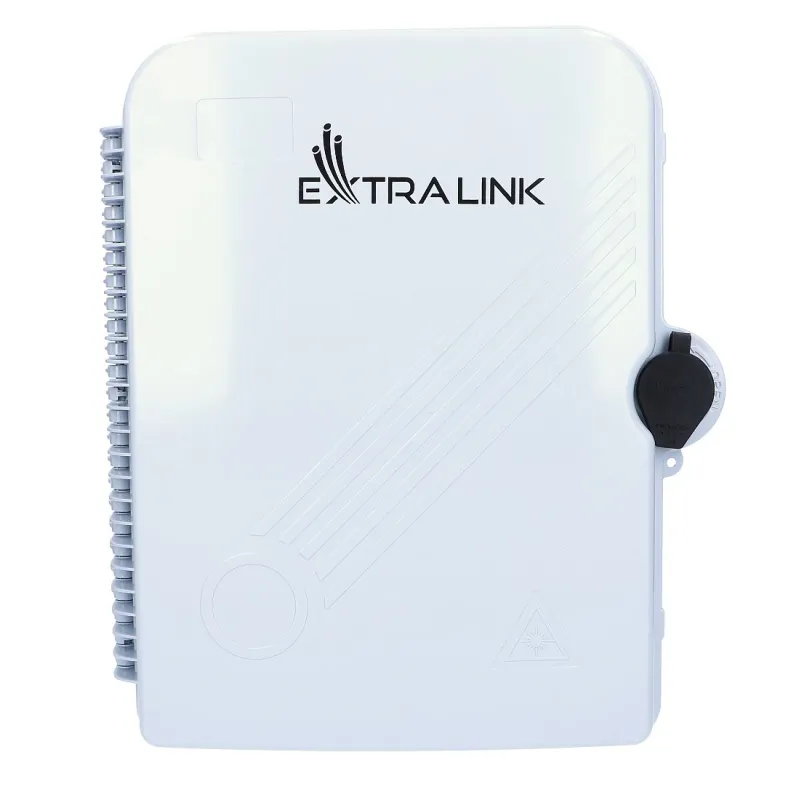

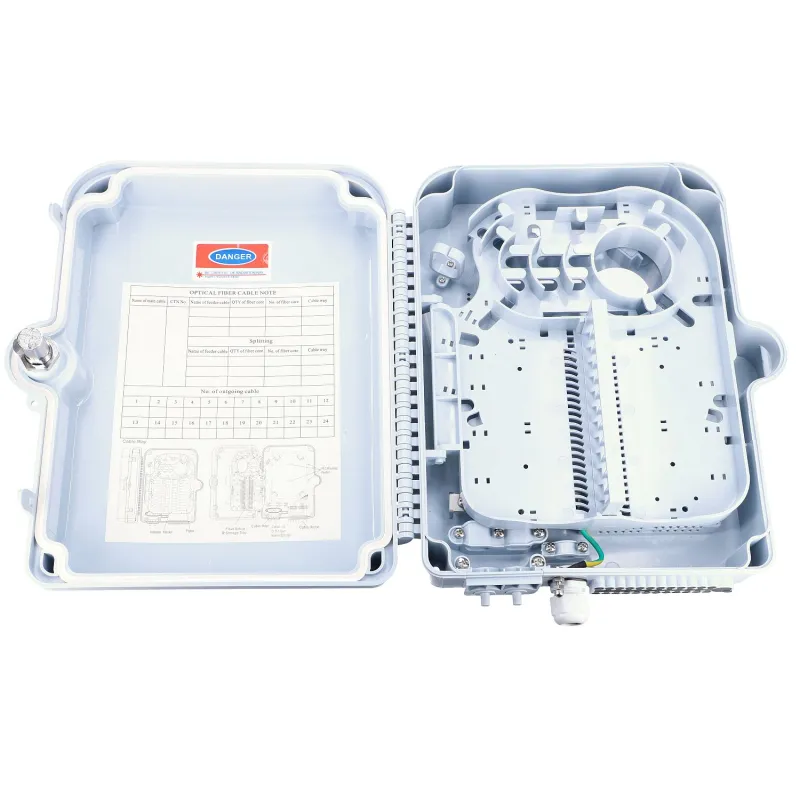

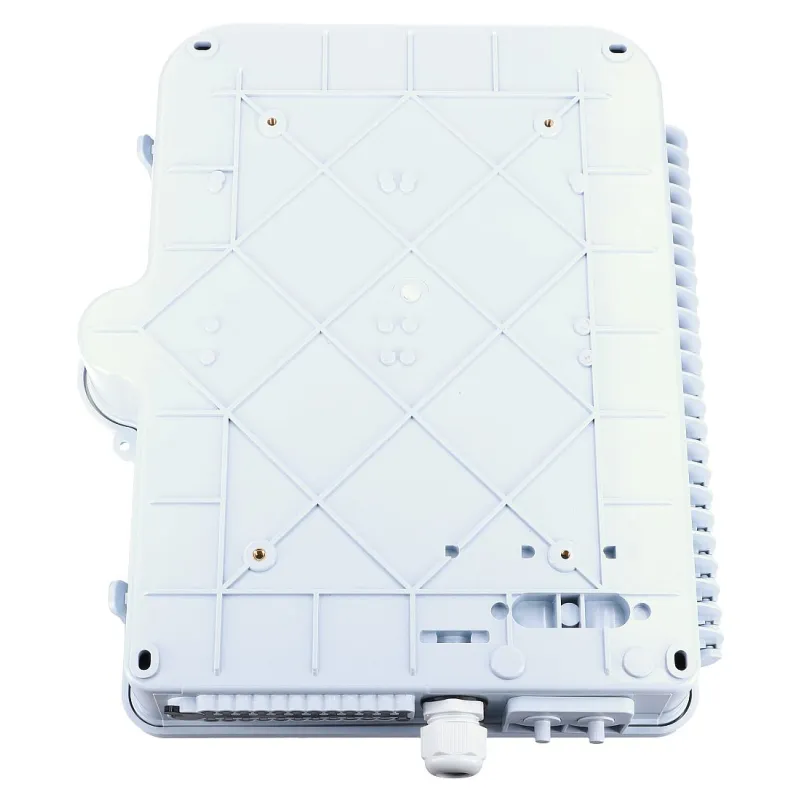

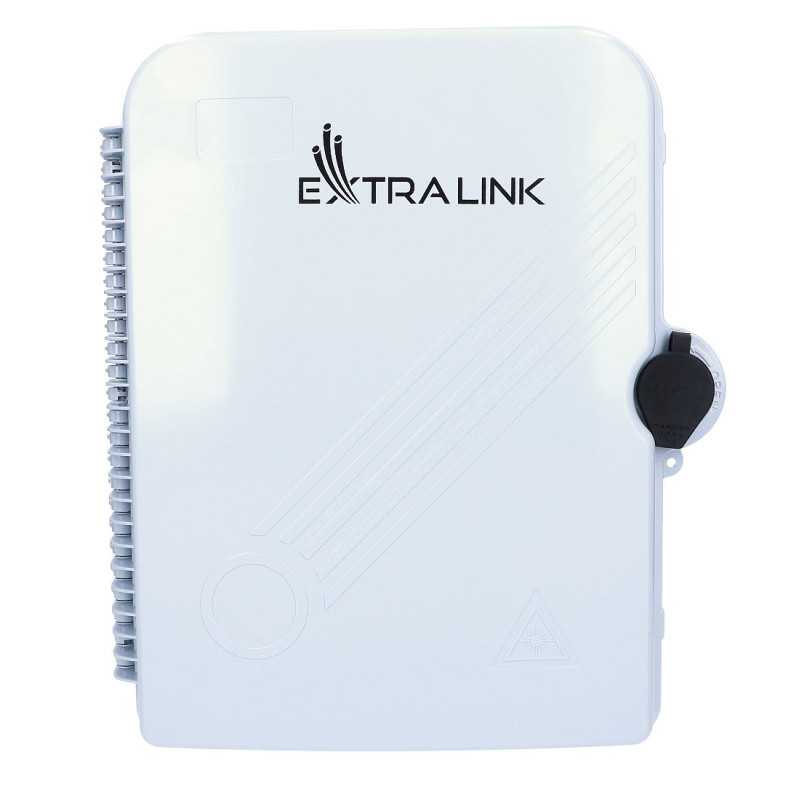

Extralink Fiona Fiber optic distribution box 24 core

EXTRALINK FIONA 24 CORE - fiber optic box

EXTRALINK FIONA 24 CORE serves as an end point of the power cable that connects to the drop cable in the FTTx communication network system. The fiber optic box can be used for fiber linking, splitting and distribution. It also provides solid protection and gives the possibility to manage the FTTx network building.

Features:

Features:

• Fully enclosed structure
• Material: PC+ABS, waterproof, dustproof, ageing resistant, protection class up to IP65
• Power cord and drop cable mounting, fiber linking, mounting, storage and distribution in one
• Cables, pigtails, crossover cables run on their own path
• Installation of the SC-type adapter
• Easy maintenance
• The control panel can be inverted and the power cable is articulated
• Maximum capacity is 24 fibres

Technical data on lightning resistance

The earthing device is insulated together with the housing, the insulation resistance is not less than 1000 M/500V (DC); IR 1000M/500V. The static voltage between the earthing device and the housing is not less than 3000V(DC)/min, without puncture; U3000V
