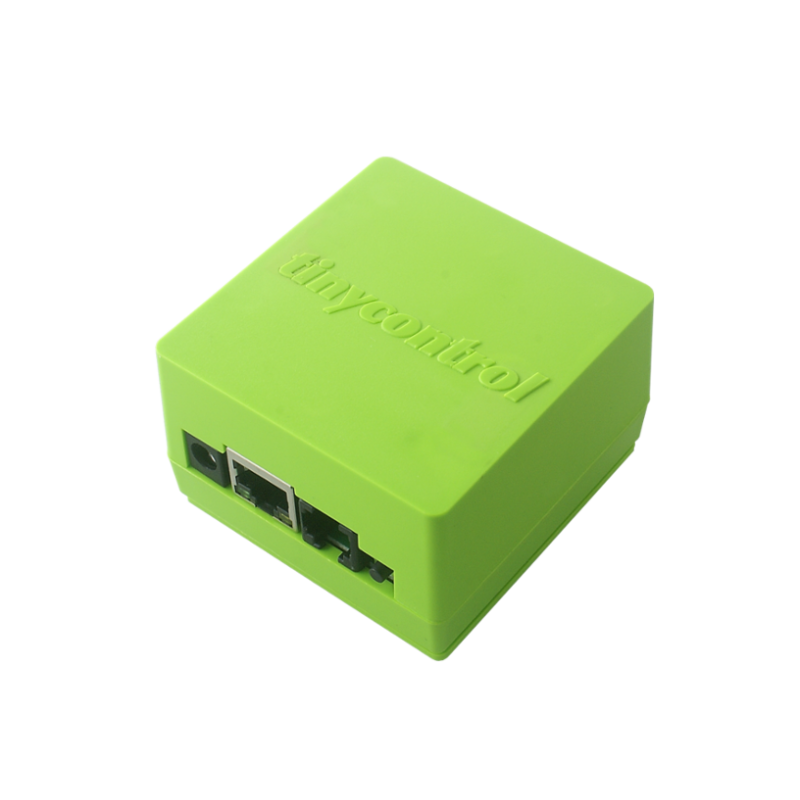

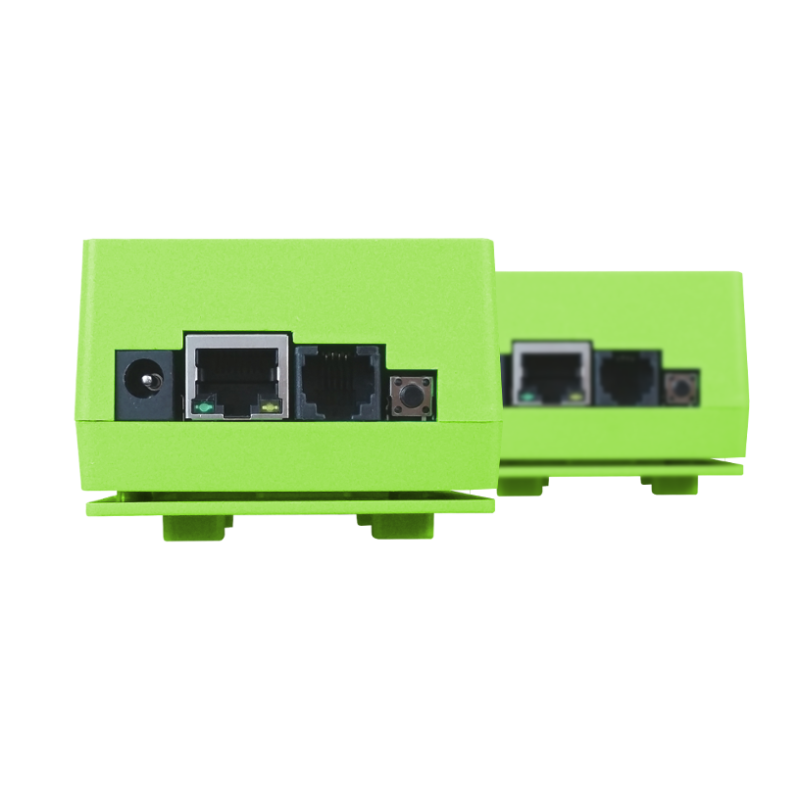

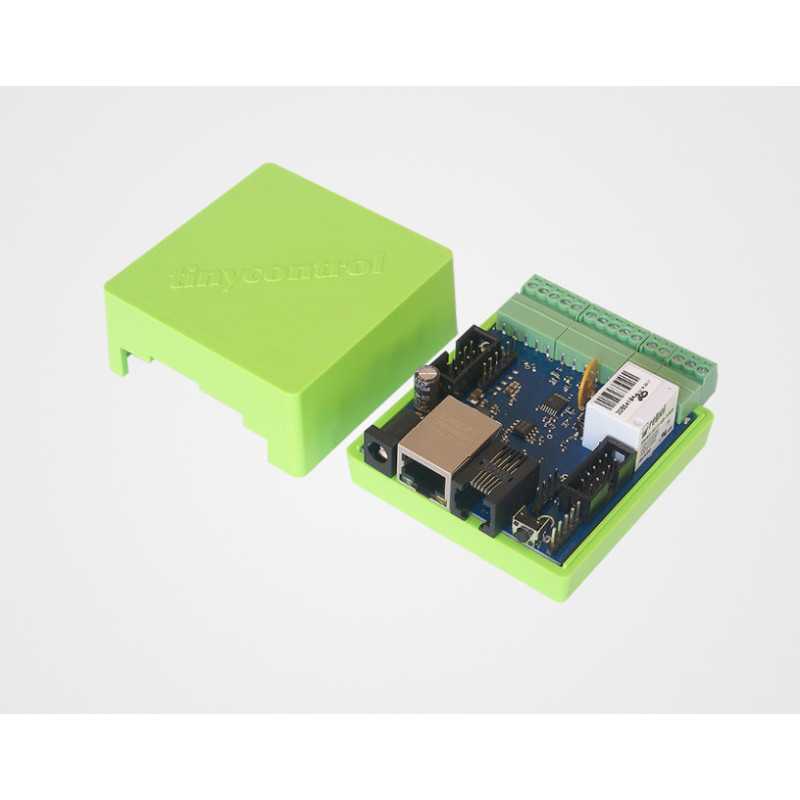

Tinycontrol LAN Controller V3 in housing

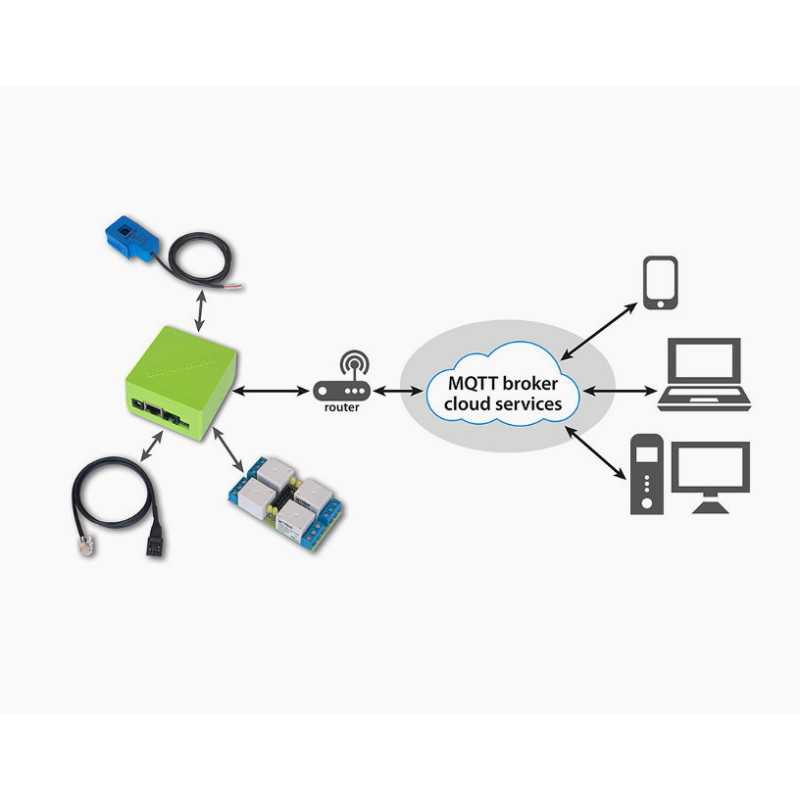

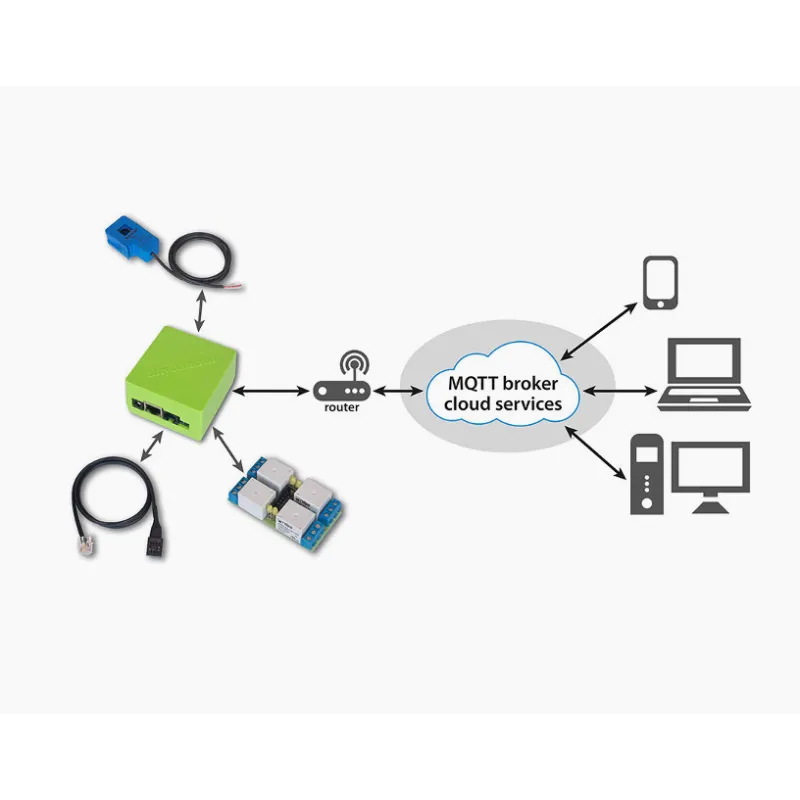

The Tinycontrol LAN v3 controller is used to read measured values from sensors connected to the device, and to control other electronic devices via digital and analog outputs. The Ethernet port allows connection to a local network and remote operation. Dedicated application for smartphones and a web interface allow to configure operation schedules and event scenarios.

Key features

• 4 analogue inputs with switchable gain (measurement from 1mV to 33V) - for measurement of voltage, DC current, AC current (additional sensors), operating pressure sensors, thermocouples, distance sensors, photoresistors for light measurement and many others.
• 2 analogue inputs for voltage measurement up to 3,3V - for measurement of DC and AC voltages and currents (by additional sensors) and 4-20mA transmitter.
• Digital input in 1-Wire standard - measurement of up to 8 DS18B20 temperature probes and iButton reading.
• Digital input in I2C standard (together with 1-Wire on RJ12 connector) - to connect various devices e.g. temperature and humidity sensor AM2320 or BME280, OLED display with configurable text display, RTC clock and many others.
• Serial bus (UART) - currently supports CO2 sensor, PM10/PM2.5 sensor, GSM module and PV Duraluxe inverter.
• 4 logic inputs - as status sensor for opening monitoring, infrared motion detectors, for a push button for manual switching with the option of bistable mode, as a pulse counter from the energy meter.
• 1 relay (NO, C, NC).
• 1 transistor output - supply voltage at the output, to control loads with current consumption up to 1A.
• 4 outputs for switching relays, transistors in OC standard.
• 4 PWM outputs 50Hz to 100kHz.
• Measuring supply voltage and board temperature.
