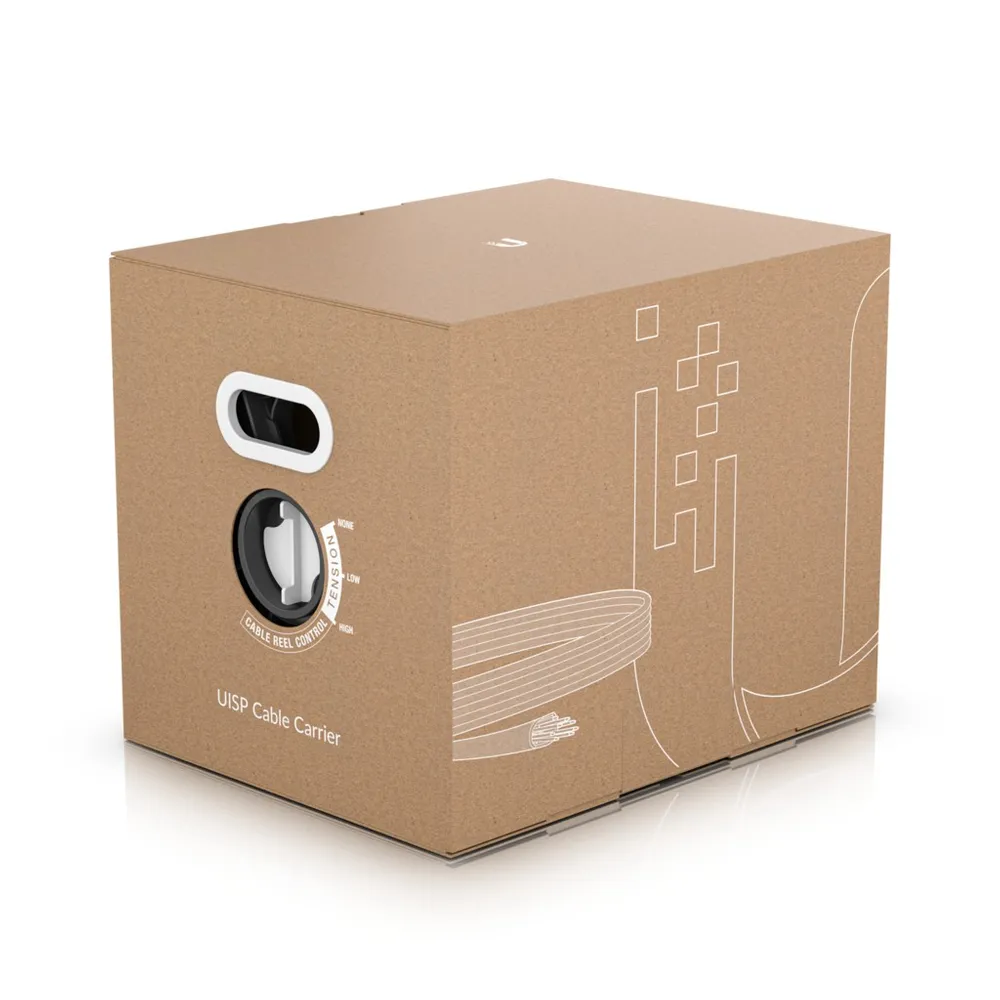

UISP Cable Carrier is an industrial category 5e shielded cable with multi-layer protection from the environment. The reinforced construction allows UISP Cable Carrier to operate in harsh climatic conditions, the outer sheath reliably protects the cable from rain and snow and other adverse weather conditions.
The discharge conductor and internal shielding provide maximum protection against failure due to electrostatic discharge. The use of higher category cable ensures that there is no signal loss due to mutual twisting of cables. These properties of the Ubiquiti UISP Cable Carrier allow it to achieve stable data rates even in the presence of electromagnetic interference.
| Features / filters | |
| Cabel for assembly | Outside the building |
| Cable category | Cat.5e |
| Length | 305m |
| Shielding type | SF/UTP |
| AWG wire size | 24 |
| Cable length | 305 |
| Cable standard | Cat5e |
| Cable top coat | PE |
| Cable type | Installation cables |
| Cabling technology | 10/100/1000Base-T(X) |
| Conductor material | Copper |
| Conductor type | Solid |
| Depth | 425 |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 84733080 |
| Height | 340 |
| Jacket material | Polyethylene (PE) |
| Operating temperature (T-T) | -40 - 80 |
| Storage temperature (T-T) | -30 - 75 |
| Weight | 16 |
| Width | 330 |
| Basic general data | |
| Manufacturer | Ubiquiti |
| Model | UISP-Cable-Carrier |
| Type | Copper cable (Stranded) |
| Box size | 330 mm x 425 mm x 340 mm 13 x 16.7 x 13.4" |
| Length | 305 m 1000 ft |
| Box weight | 16 kg 35.3 lb |
| Colour | Black |
| Cable category | Cat. 5E, shielded |
| Data transmission speed | Up to 1 Gbps |
| Conductor's calibre | 24 AWG |
| Guide | Solid bare copper |
| Core diameter | 0.500 mm (±0.005 mm) |
| Insulating material | Solid polyethylene |
| Conductor insulation thickness | Average 0.295 mm Minimum 0.29 mm |
| Spacer (polyester sheath) | Thickness 0.025 mm Width 20 mm |
| Conductor diameter | 1.16 ± 0.02 mm |
| Cover (aluminium foil) | Thickness 0.060 mm Width 20 mm |
| Anti-crosstalk divider | LDPE: 4.2 * 0.3 mm |
| Electrostatic discharge cable | 0.4 CCS |
| Breaking filament | Yes |
| Secondary screen (braid) | 16 * 8 * 0.16 AA Density: 95% |
| Jacket material | Polyethylene |
| Sheath thickness | Average 0.52 mm Minimum 0.46 mm |
| Diameter | 6.8 mm (±0.30 mm) |
| Colour of coat | Black |
| Storage temperature range | -30°C to 75°C -22 to 167° F |
| Installation temperature range | -20 to 60° C -4 to 140° F |
| Operating temperature range | -40 to 80° C -40 to 176° F |
| Standards | ANSI/TIA-568-C.2 (2009) ISO/IEC 11801 (Edition 2.2) |
