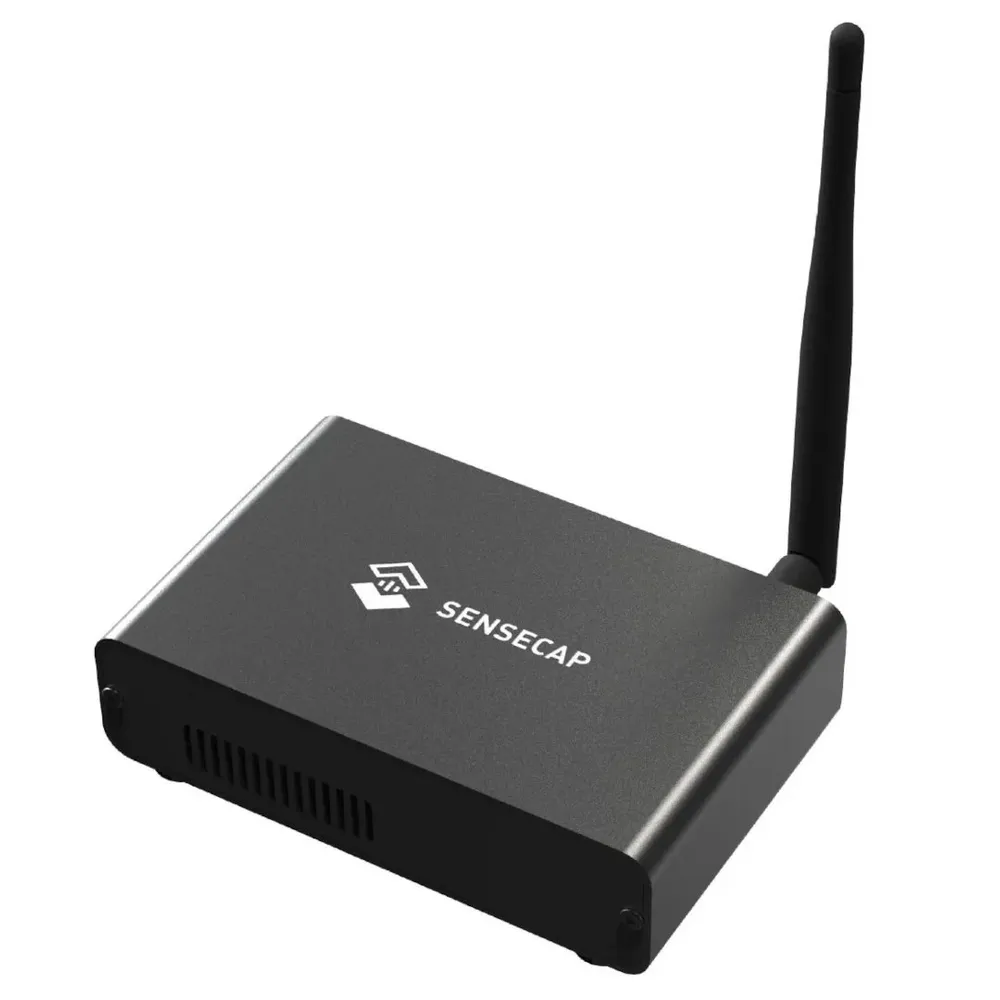

The SenseCAP M1 EU868 is a powerful, ready-to-use LoRaWAN indoor gateway compatible with the Helium LongFi Network. The SenseCAP M1 can connect to The People's Network in a few simple steps and helps build LoRa applications at low cost. With built-in Bluetooth , setup is quick and easy. SenseCAP M1 provides wide wireless coverage and high data throughput for LoRa/LoRaWAN devices. It helps you join and contribute to the network infrastructure while benefiting from the Helium community.
As a LoRaWAN gateway with powerful and stable performance, the SenseCAP M1 is based on a Raspberry Pi 4 (8GB RAM) and embedded with a WM1302/WM1303 (Semtech SX1302/SX1303) LoRa hub, featuring wide coverage and low power consumption.
For the highest level of security, it uses the ECC608 cryptographic chip for secure authentication to effectively protect your device.
The SenseCAP M1 provides an OTA operating system and Docker-based OTA software to enable automatic online updates. Equipped with a 64GB MicroSD card, it also meets storage requirements for potential updates.
A sophisticated remote diagnostics mechanism is built into the SenseCAP M1, enabling quick online assistance for any problems with the SenseCAP M1 at the user's request.
The SenseCAP M1 is equipped with a powerful cooling solution. It has a heat sink and fan in an aluminum housing, which allows automatic temperature management even in harsh conditions, ensuring long-lasting and stable operation.
SenseCAP M1 is very convenient to use. You can easily place the SenseCAP M1 next to a window or attach it to a wall. It is also recommended to place the gateways 350-400 meters away from each other to extend the network range and achieve higher profits.
As a Helium-compatible gateway with built-in Bluetooth, you can easily set up the SenseCAP M1 using the Helium App on your smartphone in minutes by following 6 simple steps. SenseCAP M1 supports both WiFi or Ethernet connection to the Internet.
The People's Network is operating thanks to a new initiative made possible by Helium Blockchain and LongFi technology. HeliumNetwork provides the scalability of a LoRa-based network, develops the mechanism and lays the foundation for The People's Network, which is a milestone for long-range, low-power IoT applications. With this new initiative, The People's Network has become an infrastructure to support more diverse IoT applications. As a Helium miner certified by DeWi (The Decentralized Wireless Alliance), the SenseCAP M1 enables HNT cryptocurrency mining while providing LoRaWAN coverage.
Technical data | |
Processor | Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz) |
RAM | 8GB |
Memory | 64GB MicroSD |
Supported frequencies | EU868 Version: 863MHz ~ 870MHz |
Sensitivity | -125dBm @125KHz/SF7 -139dBm @125KHz/SF12 |
TX power | Up to 26 dBm |
Antenna gain | EU868: 2.8 dBi |
Antenna impedance | 50 Ohms |
Antenna radiation pattern | Omnidirectional |
Wi-Fi | 2.4 GHz and 5.0 GHz IEEE 802.11ac |
Bluetooth | 5.0 |
LoRaWAN | Supports class A, C |
Input voltage | DC 5V - 3A |
Interfaces | USB Type-C (power) * 1 Ethernet RJ45 * 1 RP-SMA female antenna connector* 1 |
Operating temperature | 0°C to 50°C |
Relative humidity | 0% - 90% (non-condensing) |
Heat dissipation | Aluminum housing, heat sink and cooling fan |
Degree of protection | IP20 |
Certification | FCC, CE |
