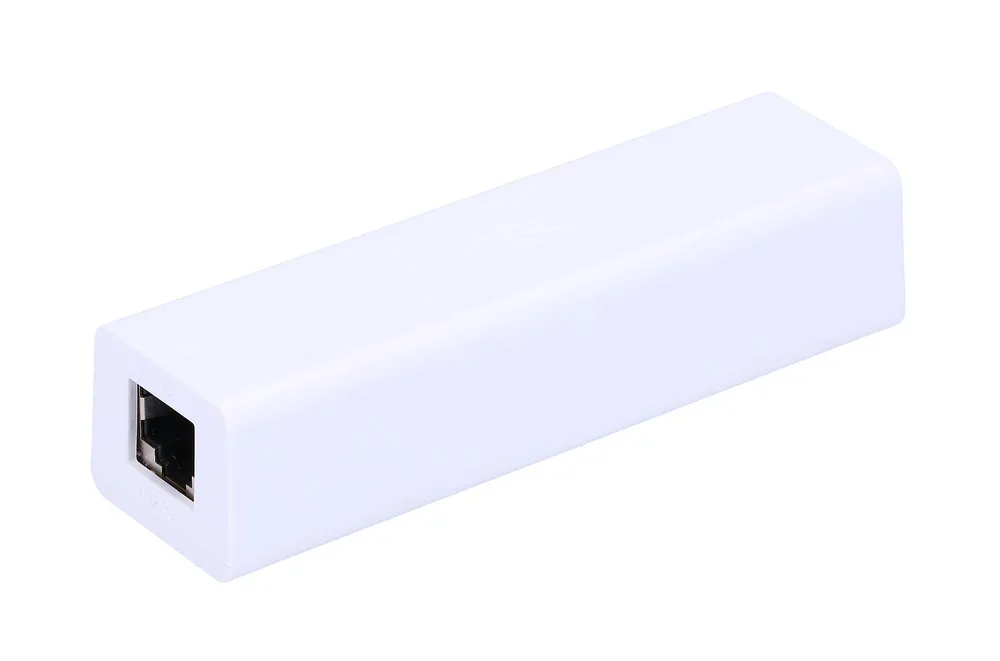

With Instant 802.3af Adapter you can turn any PoE-powered device into a device fully compatible with PoE 802.3af standard, where the voltage is 48V.
Instant 802.3af Adapter works with different 802.3af switches for remote power control. For easy power management, you can centralize 802.3af power sources and the power switch, and connect the UPS (Uninterruptible Power Supply Unit) as a backup. In this way, the network continues to operate, even during a temporary power outage.
Instant 802.3af Adapter is compatible with most Ubiquiti devices powered by PoE using 100 Mb/a port, including series devices:
- airMAX™
- airVision™
- UniFi™
- mFi™
| Equipment features | |
| Input power supply | 48V, 802.3af |
| Output power supply | 18V, 0.7A |
| PoE output | Positive 4, 5; Return 7, 8 |
| ESD/Voltage surge protection | ±15kV |
| Physical characteristics | |
| Model | INS-8023AF-I |
| Dimensions (mm) | 93.5 x 27 x 21.5 |
| Weight | 200 g |
| Operating temperature | 0 to 70° C |
| Declaration of conformity | Download |
Yes
Input power: 48V, 802.3af
Output power supply: 18V, 0.7A
