XtremeRange is a series of radio modules from Ubiquiti using the knowledge and experience gained in customer interaction, performance evaluations and laboratory tests. It is the successor to the extremely popular SuperRange series, the 802.11 high performance radio modules.

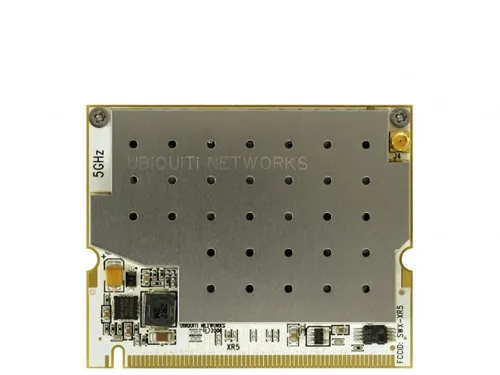

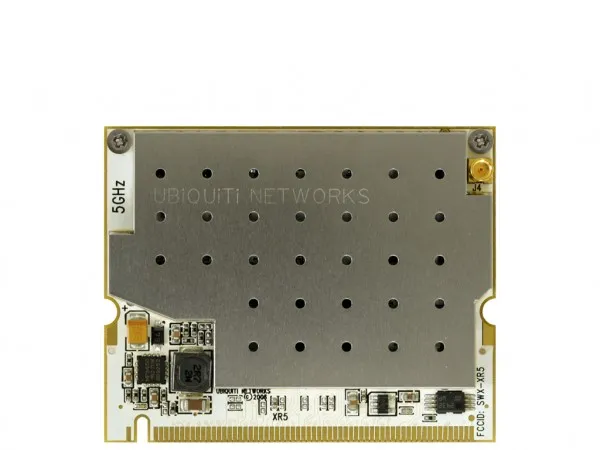

The XtremeRange5 represents the first 802.11a carrier class radio module operating in the 5GHz band designed specifically for applications requiring the highest levels of performance and reliability.
| Basic technical parameters | |
| Chipset | Atheros, 6th generation, AR5414 with SuperA/TurboSupport |
| Radio | IEEE 802.11a, 5GHz |
| Interface | 32-bit mini-PCI Type IIIA |
| Voltage | 3.3VDC |
| Antenna ports | Single MMCX |
| Temperature during operation | -40C to +80C |
| Security | WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data rates | 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps |
| Channel widths | TX 5MHz / 10MHz / 20MHz / 40MHz |
| RoHS compliance | Yes |
| Wireless network adjustments | FCC Part 15.247 (23dBi Aerial), IC RS210, CE |
| Frequency of operation | 5.20-5.825GHz |
| Range inside the building (depending on the antenna): | up to 150 metres |
| Range outside the building (depending on the antenna): | up to 50km |
| Cisco operation | CCX 4.0 Certified driver available from Ubiquiti |
Frequency of operation: 5.20-5.825GHz
Temperature during operation from -40C to +80C
