ABOUT PRODUCT

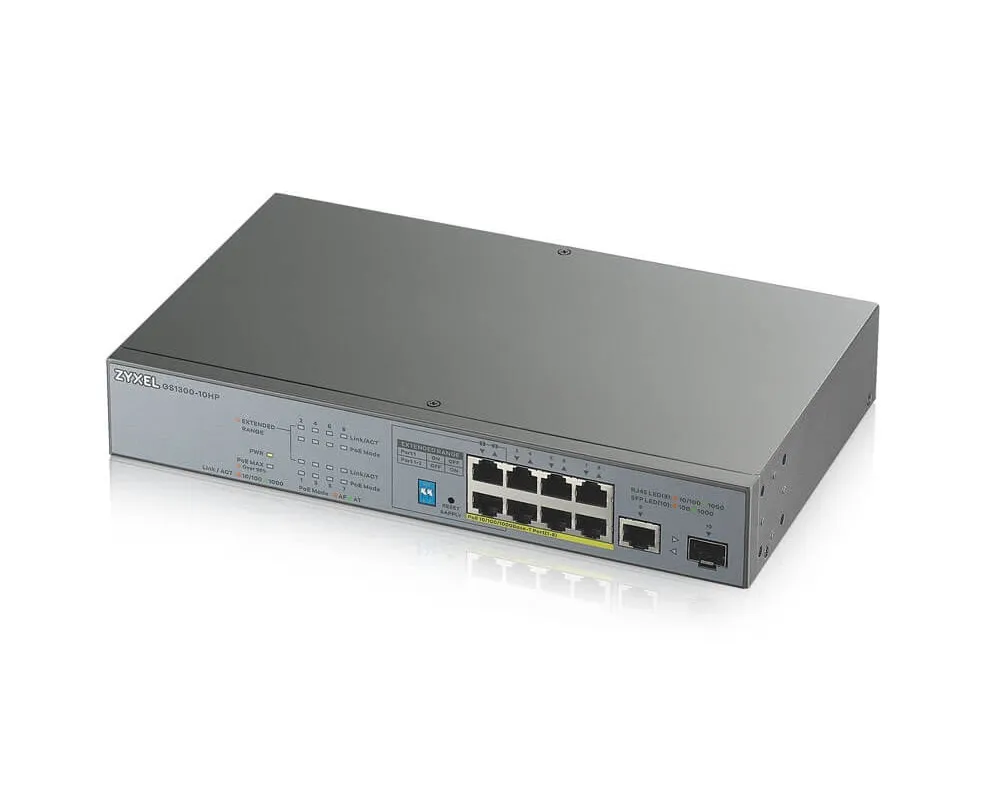

Zyxel GS1300-10HP Specialist Switch for CCTV Systems

Zyxel GS1300 - 10HP is a PoE Switch for IP cameras, 8xGE PoE , 1xSFP, PoE budget 130W, power transmission range up to 250m, enhanced protection against surges and electrostatic discharge. Unlike other Ethernet switches, the GS1300 Series peripherals can be placed more than 100 meters away from the switch, allowing you to install IP cameras or PoE-powered devices in remote locations where Cat 5e cable is already connected. If you switch the DIP switch inextended-range mode, the maximum distance increases to 250 meters. By using only one switch with PoE, you can significantly save money and effort.


Key benefits and features

  • 8 Gigabit Ethernet ports with PoE support
  • Lightning protection on Ethernet ports and power input
  • Easy installation over long distances
  • High PoE budget and intuitive front panel design
  • The best choice for installing a monitoring system

SPECIFICATION

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 8x [10/100/1000M (RJ45)] , 1x [1G Combo (RJ45/SFP)],
Number of PoE ports 8x [802.3af/at (1G)]
Management No
Power (W) 130

Basic technical parameters
Product code GS1300-10HP
Product name 8-port GbE Unmanaged PoE Switch with GbE Uplink
Switch class Uncontrolled
Port density
Total number of ports 10
100/1000 Mbps 9
Gigabit SFP 1
Configurable extended range ports 2
PoE power supply
PoE ports 8
Total PoE budget (watts) 130
PoE 802.3at Yes
Performance
Switching Capacity (Gbps) 20
Transmission Rate (Mpps) 14,8
Packet buffer (byte) 525 K
MAC address table 8 K
Power supply
Input 100 - 240 V AC, 50/60 Hz
Max. power consumption (Watts) 155,8
Physical Specifications
Dimensions (WxDxH) 267 mm x 162 mm x 44 mm
Weight 1,65 kg
Included accessories Power cord
Wall-mounting kit
Rack mounting kit
Environmental Specifications
Operation Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (Non-condensing)
Storage Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (Non-condensing)
MTBF (hours) 394,567
Heat dissipation (BTU/hour) 531.278
Acoustic noise @ 25°C (dBA) 44

SUPPORT

Downloads:

Data sheet Download
Quick Start Guide Download
User Manual Download

FAQ

How many cameras can be connected to the switch without additional power?

Up to 8 cameras can be connected to the switch without additional power supply for the cameras (up to 100m cable range).

What is Gigabit Ethernet?

Gigabit Ethernet is the standard for the data rate that is supported by the Zyxel GS1300-10HP switch and can be 1000 Mbps (1 Gbps).
