Extralink VIRTUS V3 | PoE Switch | 16x 100Mb/s PoE/PoE+, 2x Gigabit RJ45 + 1x SFP, 150W

CODE: EX.16101 / EAN: 5903148916101

Extralink VIRTUS V3 | PoE Switch | 16x 100Mb/s PoE/PoE+, 2x Gigabit RJ45 + 1x SFP, 150W

CODE: EX.16101 / EAN: 5903148916101
131,40 GBP without VAT (net)
Number of PoE ports: 16x [802.3af/at (100M)]
10G support: No
Show more parameters

About product

VIRTUS V3 is a PoE switch, 16 10/100Mbps PoE ports with 2 Gigabit Uplink ports and 1 SFP port.

Extralink VIRTUS V3 is perfect for powering IP cameras, wireless access points or IP phones. VIRTUS V3 switch supports 4 modes of operation. In AI VLAN mode, the ports from 1-16 are isolated from each other, which can effectively stop broadcast storms and improve network performance. In AI Extend mode, the effective distance of data transmission and PoE power to ports 1-8 can reach 250 meters, which is extremely useful to power cameras far away from the switch. In AI PoE mode, the switch automatically detects the operating status of the device and when it detects that the device is malfunctioning, resets the power supply to the device. In AI QOS mode: Video data will be processed with priority.

Extralink Virtus V3 Switch PoE 16 ports

Power supply to devices via Ethernet cable (PoE)

VIRTUS V3 supports IEEE 802.3af/at standards, automatically identifies devices that need PoE power, so it will not damage devices not powered by PoE. Total power budget for PoE ports is 150W. The switch does not require any additional configuration and is ready to use when removed from the package. The included mounting brackets allow mounting the switch in a standard rack.

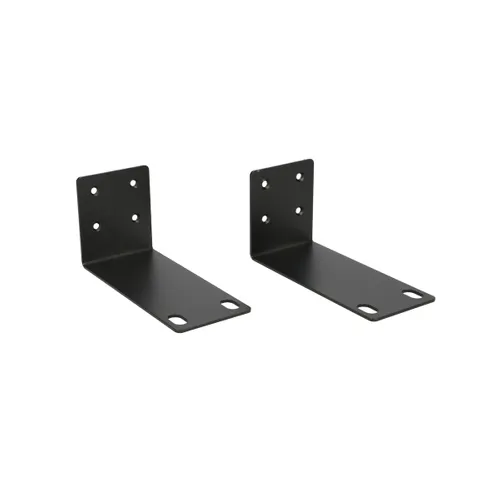

Virtus v3 Extralink rack handles

Mode buttons

- AI Extend: Port 1-8 supports PoE power up to 250 meters. (recommended cat 5 or higher cable)
- AI VLAN: Isolate ports 1-16 from each other, effectively stop network storms and improve network performance.
- AI QOS: Priority for identified video data to make video transmission smoother. Ideal mode for video surveillance.
- AI PoE: Automatically turn off the power and restart the device in case of detected inactivity (suspension).

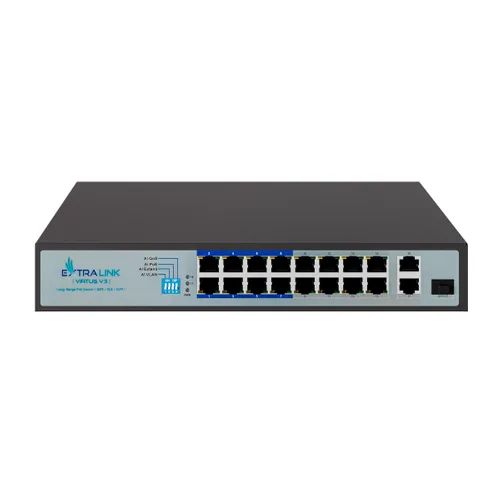

Virtus v3 16 fast ethernet poe 1x combo 2x Gbps ports
Eaxtralink Virtus v3 rack handles

Specification

Features / filters
LAN standard Fast Ethernet 10/100Mb/s, Gigabit Ethernet 10/100/1000 Mb/s,
Number of LAN ports 16x [10/100M (RJ45)] , 2x 10/100/1000BaseTX (RJ45), 1x SFP (1,25G),
Number of PoE ports 16x [802.3af/at (100M)]
10G support No
AC input frequency 50/60
AC input voltage 100 - 240
Auto-negotiation Yes
Auto-sensing Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)

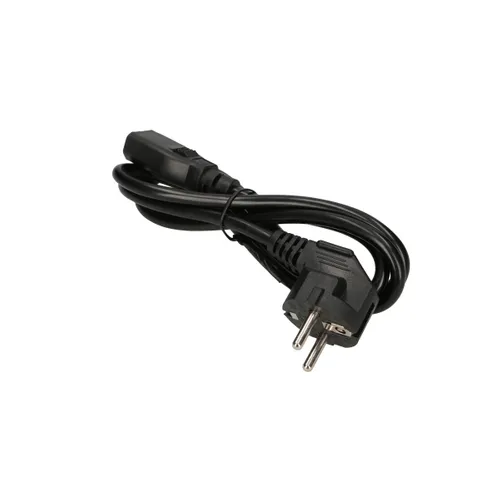

Cables included AC
Certification CE, RoHs
Cloud-managed No
Combo SFP ports quantity 1
Configuring Location Settings (CLI) No
Copper ethernet cabling technology 100BASE-TX
Depth 180
Ethernet LAN data rates 10,100
Fast Ethernet (copper) ports quantity 16
Form factor 1U
Forwarding rate 3.868
Gigabit Ethernet (copper) ports quantity 2
Height 44
LED indicators Link, PoE, Power
MAC address table 16000
Management No
Networking standards IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of fans 1
Power (W) 150
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) pass through No
Power over Ethernet (PoE) ports quantity 16
Power over Ethernet (PoE) power per port 30
Power over Ethernet (PoE) type supported Active PoE
Power over Ethernet (PoE) voltage 48
Power source AC
Power supply included Yes
Product colour Black
Quality of Service (QoS) support No
Rack mounting Yes
Reset button Yes
Stackable No
Store-and-forward Yes
Switch layer L2
Switch type Unmanaged
Switching capacity 5.2
Switching layer 2
System event log No
Total Power over Ethernet (PoE) budget 150
Traffic classification No
Traffic shaping No
Type of case Rack (1U)
User operation log No
Web-based management No
Width 285

Technical specifications for Extralink Virtus V3 model

Parameters
Supported standards IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Ports 16x 10/100Mbps RJ45
1x 10/100/1000Mbps RJ45
1x RJ45/SFP Combo
PoE 16x 10/100Mbps RJ45 PoE
Total energy budget: 150W
Maximum power per port: 30W
LED lights 17x Link/Act
16x POE
1x Power
Performance Switching mode: store and forward
Capacity: 5.2Gbps
Packet transfer rate: 3.868Mpps
Support for MAC address list: 16K
Power supply AC 100-240V/50-60Hz
Dimensions (L×W×H) 285mm × 180mm × 44mm
